CSLA1CH - Linear Current Sensors

Download the CSLA1CH datasheet PDF (CSLA1CD included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for linear current sensors.

Description

Honeywell’s CSLW Series miniature, open-loop current sensors incorporate our SS490 Series miniature ratiometric linear Hall-effect sensor (MRL ).

The sensing element is encapsulated in a printed circuit board-mountable plastic package.

Features

  • ɀ Linear output ɀ AC or DC current sensing ɀ Through-hole design ɀ Fast response time ɀ Output voltage isolation from input ɀ Minimum energy dissipation ɀ Maximum current limited only by conductor size ɀ Adjustable performance and built-in temperature compensation assures reliable operation ɀ Accurate, low cost sensing ɀ Operating temperature range.
  • 25 to 85°C ɀ Housing: PET polyester ORDER GUIDE.
  • BOTTOM MOUNT WITH 9SS SENSOR, SOURCE OUTPUT Mtg. Dim. Fig. 1 1 2 1 2 1 2 1a 2 1a 1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CSLA1CD-Honeywell.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number CSLA1CH
Manufacturer Honeywell
File Size 783.51 KB
Description Linear Current Sensors
Datasheet download datasheet CSLA1CH Datasheet

📁 Similar Datasheet

  • CSLA2DH - CURRENT SENSOR (ETC)
  • CSL-372 - SPECIFICATION OF PYROELECTRIC PASSIVE INFRARED SENSOR (ETC)
  • CSL0406WBCW - LEDs (Rohm)
  • CSL05 - SURFACE MOUNT SILICON ULTRA LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSORS (Central Semiconductor)
  • CSL05D - SURFACE MOUNT SILICON ULTRA LOW CAPACITANCE TRANSIENT VOLTAGE SUPPRESSORS (Central Semiconductor)
  • CSL07 - LEDs (Rohm)
  • CSL0701DT - LEDs (Rohm)
  • CSL0701UT - LEDs (Rohm)
  • CSL1104WBA - LED (ROHM)
  • CSL1104WBB - LED (ROHM)
Other Datasheets by Honeywell

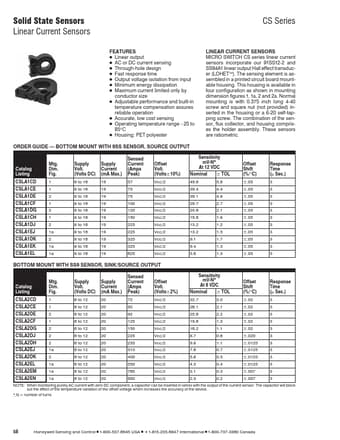

Full PDF Text Transcription

Click to expand full text
Solid State Sensors Linear Current Sensors FEATURES ɀ Linear output ɀ AC or DC current sensing ɀ Through-hole design ɀ Fast response time ɀ Output voltage isolation from input ɀ Minimum energy dissipation ɀ Maximum current limited only by conductor size ɀ Adjustable performance and built-in temperature compensation assures reliable operation ɀ Accurate, low cost sensing ɀ Operating temperature range –25 to 85°C ɀ Housing: PET polyester ORDER GUIDE — BOTTOM MOUNT WITH 9SS SENSOR, SOURCE OUTPUT Mtg. Dim. Fig. 1 1 2 1 2 1 2 1a 2 1a 1a Supply Volt. (Volts DC) 8 to 16 8 to 16 8 to 16 8 to 16 8 to 16 8 to 16 8 to 16 8 to 16 8 to 16 8 to 16 8 to 16 Supply Current (mA Max.) 19 19 19 19 19 19 19 19 19 19 19 Sensed Current (Amps Peak) 57 75 75 100 120 150 225 225 325 325 625 Offset Volt.
