HT7123-2, HT7121-2 30mA TinyPower LDO

HT7123-2 Description

.
The HT71xx-2 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology.

HT7123-2 Features

* Low power consumption
* Low voltage drop
* Low temperature coefficient
* High input voltage (up to 30V)
* Output voltage accuracy: tolerance ±1%

HT7123-2 Applications

* Battery-powered equipment
* Communication equipment
* Audio/Video equipment Selection Table Part No. HT7121-2 HT7123-2 HT7125-2 HT7127-2 HT7130-2 HT7133-2 HT7136-2 HT7144-2 HT7150-2 Output Voltage 2.1V 2.3V 2.5V 2.7V 3.0V 3.3V 3.6V 4.4V 5.0V Note: ″xx″ stands for outp

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HT7123-2, HT7121-2. Please refer to the document for exact specifications by model.

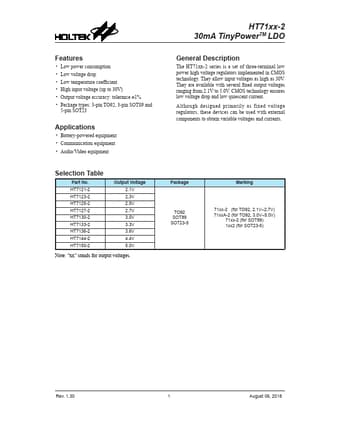

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT7123-2, HT7121-2
Manufacturer
Holtek
File Size
369.60 KB
Datasheet
HT7121-2-Holtek.pdf
Description
30mA TinyPower LDO
Note
This datasheet PDF includes multiple part numbers: HT7123-2, HT7121-2.
Please refer to the document for exact specifications by model.
