HT7250, HT7218 - 300mA TinyPower LDO

Holtek Semiconductor

📥 Download Datasheet

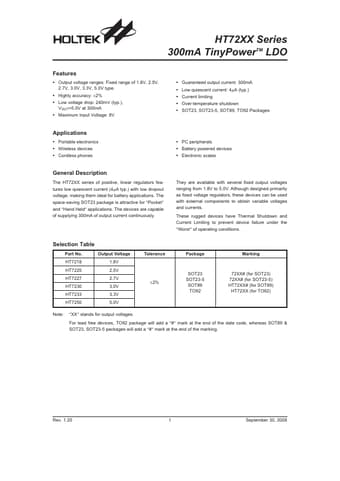

HT7250 Datasheet Preview — This datasheet PDF includes multiple part numbers: HT7250, HT7218. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HT7250, HT7218
Manufacturer	Holtek Semiconductor
File Size	220.31 KB
Description	300mA TinyPower LDO
Datasheet	HT7218-HoltekSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: HT7250, HT7218. Please refer to the document for exact specifications by model.

HT7250 Product details

Description

The HT72XX series of positive, linear regulators

Features

Output voltage ranges: Fixed range of 1.8V, 2.5V,.
Guaranteed output current: 300mA.
Low quiescent current: 4mA (typ. ).
Current limiting.
Over-temperature shutdown.
SOT23, SOT23-5, SOT89, TO92 Packages 2.7V, 3.0V, 3.3V, 5.0V type.
Highly accuracy: ±2%.
Low voltage drop: 240mV (typ. ), VOUT=5.0V at 300mA.
Maximum Input Voltage: 8V.
