HT46C48AE, HT46R47E Cost-Effective A/D Type 8-Bit MCU

HT46C48AE Description

HT46R46E/C46E/R47E/C47E /R48AE/C48AE/R49E Cost-Effective A/D Type 8-Bit MCU Technical Document * Tools Information * FAQs * Application N.
The Cost-Effective A/D Type MCU Devices are a series of 8-bit high performance RISC architecture microcontrollers, designed especially for application.

HT46C48AE Features

* Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V
* 13 to 23 bidirectional I/O lines
* External interrupt input shared with an I/O line
* 8-bit programmable Timer/Event Counter with over- flow interrupt and 7-stage prescaler
* On-chip crystal and RC oscillator

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HT46C48AE, HT46R47E. Please refer to the document for exact specifications by model.

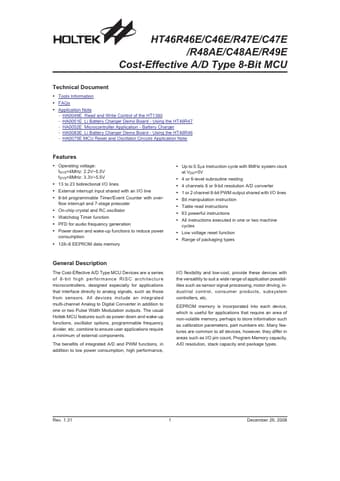

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT46C48AE, HT46R47E
Manufacturer
Holtek Semiconductor
File Size
587.80 KB
Datasheet
HT46R47E_HoltekSemiconductor.pdf
Description
Cost-Effective A/D Type 8-Bit MCU
Note
This datasheet PDF includes multiple part numbers: HT46C48AE, HT46R47E.
Please refer to the document for exact specifications by model.
