HT1086 1.5A General Purpose LDO

HT1086 Description

HT1086 Series 1.5A General Purpose LDO .
The HT1086 devices are a series of three-terminal high current low voltage regulators.

HT1086 Features

* Output voltage ranges: Fixed range of 1.8V, 2.5V, 2.85V, 3.3V, 5.0V or adjustable type.
* High accuracy: ±2%
* Low voltage drop: 1.3V (typ. ), VOUT=5.0V at 1.5A
* Guaranteed output current: 1.5A
* Low quiescent current: 8mA (typ. )
* Integrated current limit & thermal protec

HT1086 Applications

* Active SCSI terminations
* Post regulator for switching power supplies
* Low voltage microcontrollers
* Motherboard clock supplies

📥 Download Datasheet

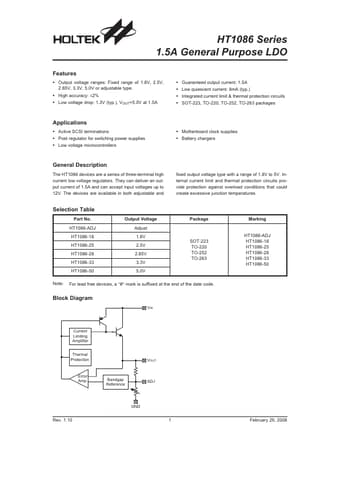

Preview of HT1086 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT1086
Manufacturer
Holtek Semiconductor
File Size
136.32 KB
Datasheet
HT1086-HoltekSemiconductor.pdf
Description
1.5A General Purpose LDO
