HT24LC04 CMOS 4K 2-Wire Serial EEPROM

HT24LC04 Description

HT24LC04 CMOS 4K 2-Wire Serial EEPROM .
The HT24LC04 is a 4K-bit serial read/write non-volatile memory device using the CMOS floating gate process.

HT24LC04 Features

* Operating voltage: 2.2V~5.5V
* Low power consumption - Operation: 5mA max. - Standby: 5mA max.
* Internal organization: 512ยด8
* 2-wire serial interface
* Write cycle time: 5ms max.
* Automatic erase-before-write operation
* Partial page write allowed
* 16-byte page

HT24LC04 Applications

* where low power and low voltage operation are essential. Up to four HT24LC04 devices may be connected to the same two-wire bus. The HT24LC04 is guaranteed for 1M erase/write cycles and 40-year data retention. Block Diagram Pin Assignment A 0 A 1 A 2 X S C L S D A I/O C o n tro l L o g ic D E C

📥 Download Datasheet

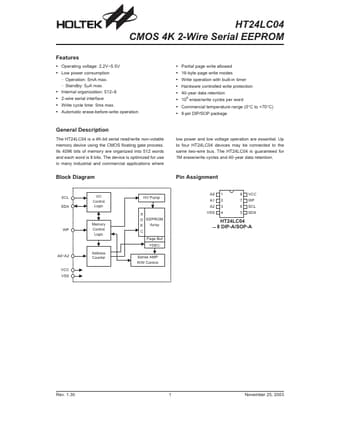

Preview of HT24LC04 PDF
