HI-1573, HI-1574 (HI-1573 / HI-1574) 3.3V Monolithic Dual Transceivers

HI-1573 Description

April 2015 HI-1573, HI-1574 MIL-STD-1553 3.3V Monolithic Dual Transceivers .
PIN CONFIGURATIONS The HI-1573 and HI-1574 are low power CMOS dual transceivers designed to meet the requirements of the MIL-STD-1553 specification.

HI-1573 Features

* ! Compliant to MIL-STD-1553A and B, ARINC 708A ! 3.3V single supply operation ! Smallest footprint available in 7 mm x 7 mm 44- pin plastic chip-scale package (QFN) ! Less than 0.5W maximum power dissipation ! Available in DIP and small outline (ESOIC) package options ! Industrial and extended tempe

HI-1573 Applications

* using a MIL-STD-1553 A/B data bus. The device produces a trapezoidal output waveform during transmission. The receiver’s differential input stage drives a filter and threshold comparator that produces CMOS data at the RXA/B and RXA/B output pins. When the MIL-STD-1553 bus is idle and RXENA or RXENB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HI-1573, HI-1574. Please refer to the document for exact specifications by model.

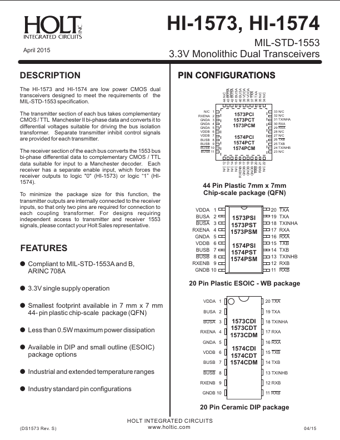

datasheet Preview Page 2 datasheet Preview Page 3
