HMCAD1041-40 Single 10-Bit 20/40 MSPS A/D Converter

HMCAD1041-40 Description

HMCAD1041-40 v01.0411 Single 10-Bit 20/40 MSPS A/D Converter .
The HMCAD1041-40 is a high performance ultra low power analog-to-digital converter (ADC).

HMCAD1041-40 Features

* 10-bit resolution
* 20/40 MSPS maximum sampling rate
* Ultra-Low Power Dissipation: 15/25 mW
* 61.6 dB SNR @ 8 MHz FIN
* Internal reference circuitry
* 1.8 V core supply voltage
* 1.7 - 3.6 V I/O supply voltage
* Parallel CMOS

HMCAD1041-40 Applications

* Medical Imaging
* Portable Test Equipment
* Digital Oscilloscopes

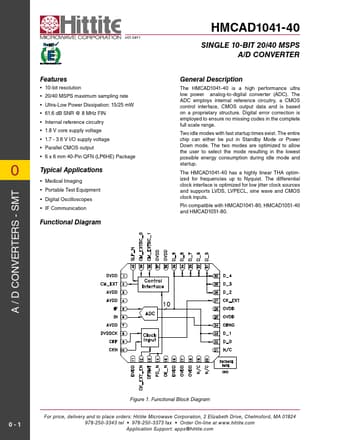

* IF Communication Functional Diagram www. DataSheet. net/ Figure 1. Functional Block Diagram For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford,
