HMC-C031 - GaAs MMIC x2 ACTIVE FREQUENCY MULTIPLIER MODULE

HMC-C031 Description

HMC-C031 v00.0806 GaAs MMIC x2 ACTIVE FREQUENCY MULTIPLIER MODULE, 6 - 10 GHz OUTPUT .
The HMC-C031 is a x2 active broadband frequency multiplier utilizing GaAs PHEMT technology in a miniature hermetic module.

HMC-C031 Applications

* The HMC-C031 is suitable for:
* Wireless Local Loop
* Point-to-Point & VSAT Radios
* Test Instrumentation
* Military & Space 100 KHz SSB Phase Noise: -140 dBc/Hz Single Supply: +5V@ 90 mA Hermetically Sealed Module Field Replaceable SMA Connectors -55° to +85°C Opera

📥 Download Datasheet

Preview of HMC-C031 PDF

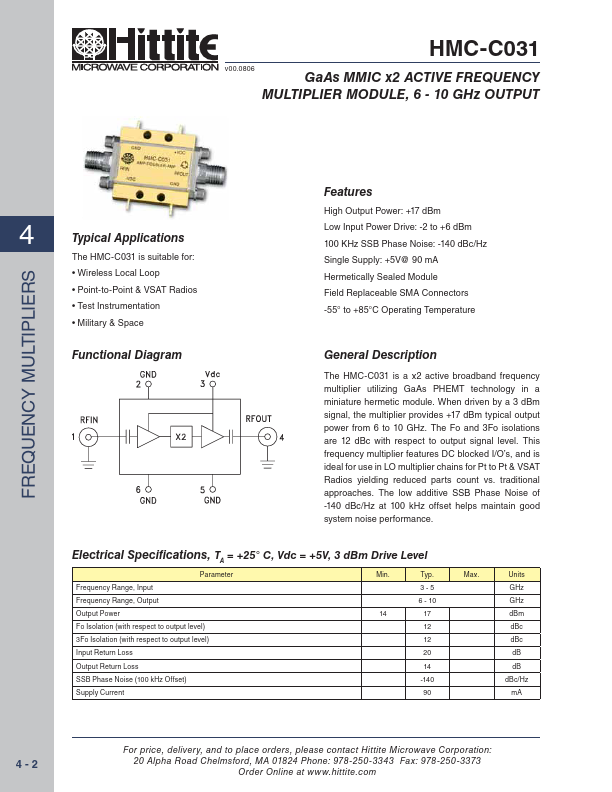

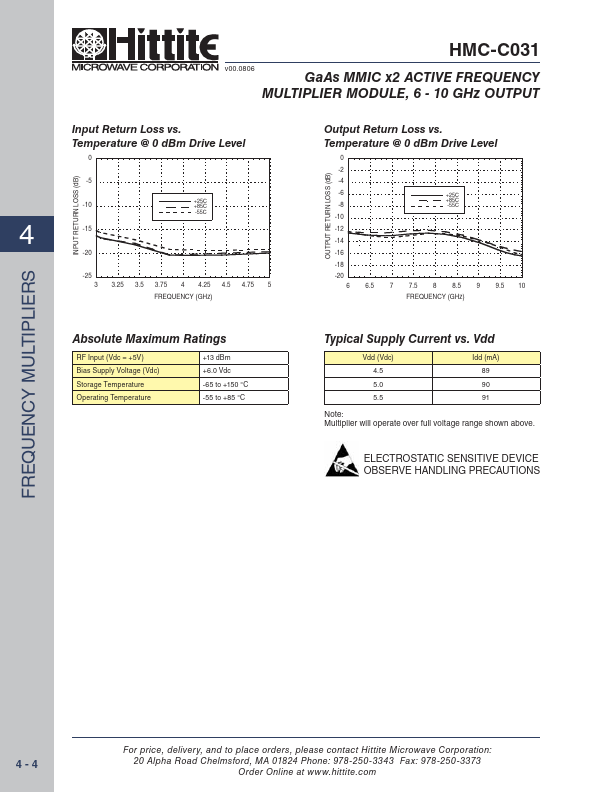

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMC-C031
Manufacturer
Hittite Microwave
File Size
263.03 KB
Datasheet
HMC-C031_HittiteMicrowave.pdf
Description
GaAs MMIC x2 ACTIVE FREQUENCY MULTIPLIER MODULE
