HMC-C016 WIDEBAND LNA MODULE

HMC-C016 Description

www.DataSheet4U.com HMC-C016 v01.0506 WIDEBAND LNA MODULE, 7 - 17 GHz 9 AMPLIFIERS - CONNECTORIZED MODULES .
The HMC-C016 is a GaAs MMIC PHEMT Low Noise Amplifier in a miniature, hermetic module which operates between 7 and 17 GHz.

HMC-C016 Applications

* The HMC-C016 Wideband LNA is ideal for:
* Telecom Infrastructure
* Microwave Radio & VSAT
* Military & Space
* Test Instrumentation
* Fiber Optics Regulated Supply Hermetically Sealed Module Field Replaceable SMA Connectors -55 to +85˚C Operating Temperature

📥 Download Datasheet

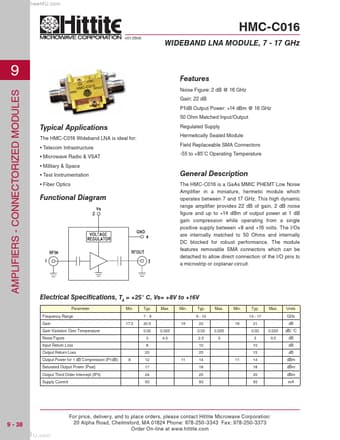

Preview of HMC-C016 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMC-C016
Manufacturer
Hittite Microwave
File Size
659.08 KB
Datasheet
HMC-C016_HittiteMicrowave.pdf
Description
WIDEBAND LNA MODULE
