M61140FP TUNER SINGLE CHIP

M61140FP Description

M61140FP TUNER SINGLE CHIP REJ03F0023-0120Z Rev.1.2 Apr.16.2004 .
The M61140FP is a semiconductor integrated circuit consisting of Tuner signal processing for NTSC color TV and VCRs.

M61140FP Features

* VIF/SIF Inter carrier type for NTSC Coil-less VCO Adjustment free AFT High-speed IF AGC
* PLL Low phase noise and High-speed lock-up Built-in band switch driver (4 port) I2C bus control Available for both XO and external reference
* Mixer/Oscillator Built-in U&V Oscillator

📥 Download Datasheet

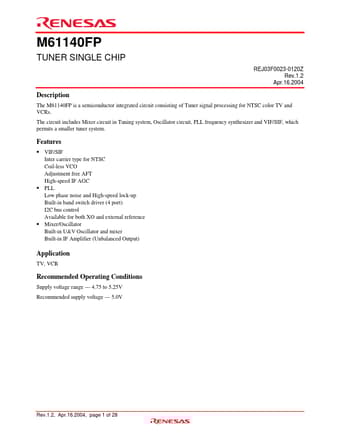

Preview of M61140FP PDF
datasheet Preview Page 2 datasheet Preview Page 3
