HZM68MFA - Silicon Planar Zener Diode for Surge Absorb

Hitachi

📥 Download Datasheet

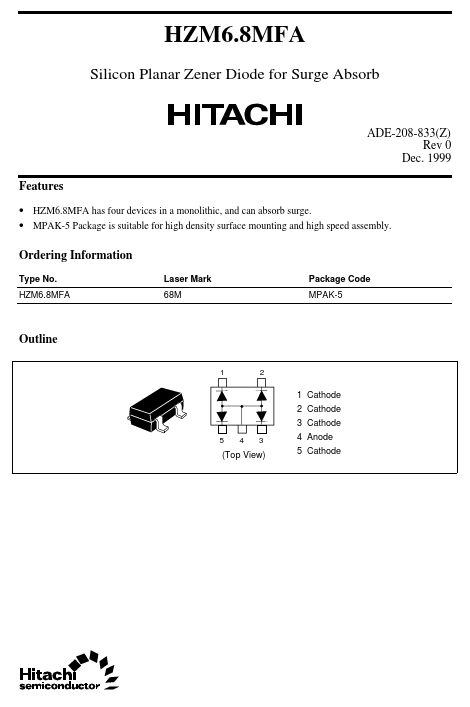

HZM68MFA Datasheet Preview — Preview of HZM68MFA PDF

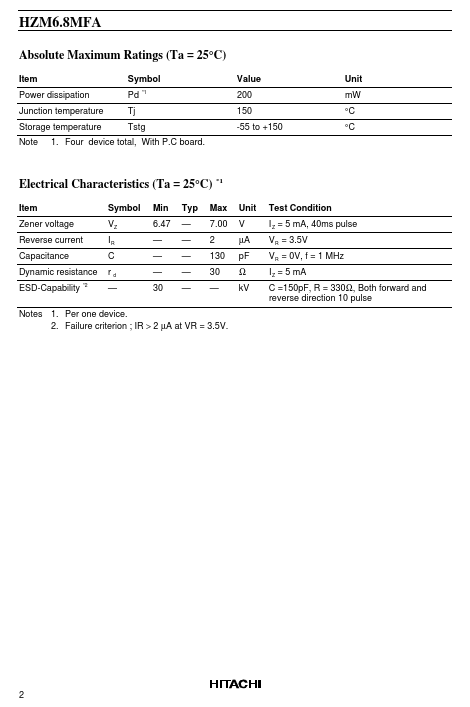

datasheet Preview Page 2

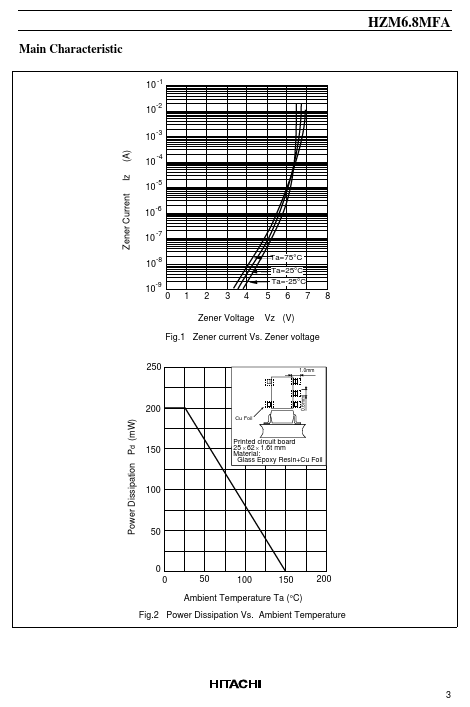

datasheet Preview Page 3

Datasheet Details

Part number	HZM68MFA
Manufacturer	Hitachi
File Size	24.65 KB
Description	Silicon Planar Zener Diode for Surge Absorb
Datasheet	HZM68MFA_HitachiSemiconductor.pdf

HZM68MFA Product details

Features

HZM6.8MFA has four devices in a monolithic, and can absorb surge.
MPAK-5 Package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HZM6.8MFA Laser Mark 68M Package Code MPAK-5 Outline 1 2 1 Cathode 2 Cathode 3 Cathode 5 4 3 4 Anode 5 Cathode (Top View) HZM6.8MFA Absolute Maximum Ratings (Ta = 25°C) Item Power dissipation Junction temperature Storage temperature Note Symbol Pd Tj Tstg.
1 Value 200 150 -55 to +150 U.
