HN58C257A, HN58C256A 256k EEPROM (32-kword x 8-bit) Ready/Busy and RES function

HN58C257A Description

HN58C256A Series HN58C257A Series 256k EEPROM (32-kword × 8-bit) Ready/Busy and RES function (HN58C257A) ADE-203-410D (Z) Rev.4.0 Oct.24, 1997 Descr.
The Hitachi HN58C256A and HN58C257A are electrically erasable and programmable ROMs organized as 32768-word × 8-bit.

HN58C257A Features

* Single 5 V supply: 5 V ±10%
* Access time: 85 ns/100 ns (max)
* Power dissipation  Active: 20 mW/MHz, (typ)  Standby: 110 µW (max)
* On-chip latches: address, data, CE, OE, WE
* Automatic byte write: 10 ms max
* Automatic page write (64 bytes): 10

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HN58C257A, HN58C256A. Please refer to the document for exact specifications by model.

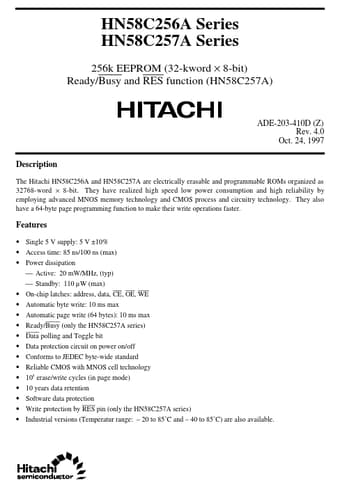

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HN58C257A, HN58C256A
Manufacturer
Hitachi
File Size
126.43 KB
Datasheet
HN58C256A_HitachiSemiconductor.pdf
Description
256k EEPROM (32-kword x 8-bit) Ready/Busy and RES function
Note
This datasheet PDF includes multiple part numbers: HN58C257A, HN58C256A.
Please refer to the document for exact specifications by model.
