H7N0307L Silicon N-Channel MOSFET

H7N0307L Description

H7N0307LD, H7N0307LS, H7N0307LM Silicon N Channel MOS FET High Speed Power Switching ADE-208-1516D (Z) 5th.Edition May 2002 .

H7N0307L Features

* Low on-resistance RDS(on) =4.6 mΩ typ.
* Low drive current
* 4.5 V gate drive device can be driven from 5 V source Outline LDPAK 4 4 D 4 G 1 S 2 1 2 3 1 2 H7N0307LS 3 3 H7N0307LM 1. Gate 2. Drain 3. Source 4. Drain H7N0307LD H7N0307LD, H7N0307LS, H7N0307LM Abs

📥 Download Datasheet

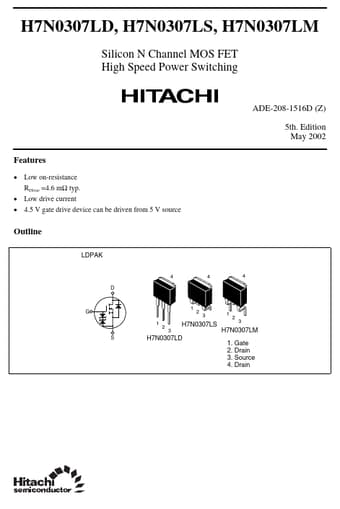

Preview of H7N0307L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
H7N0307L
Manufacturer
Hitachi
File Size
103.71 KB
Datasheet
H7N0307L_Hitachi.pdf
Description
Silicon N-Channel MOSFET
