DAM3B15 - SURGE SUPPRESSOR DIODE

Download the DAM3B15 datasheet PDF (DAM3B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surge suppressor diode.

Features

  • High transient reverse power capability suitable for protecting automobile electronic components etc.
  • Diffused-junction. Resin encapsulated.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DAM3B_Hitachi.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • DAM15 - CONNECTOR (ITT Industries)
  • DAM15SD - CONNECTOR (ITT Industries)
  • DAMDA1E1G6 - GPS Antenna (SHOULDER)
  • DAMGN4H1_K3M - GPS Antenna (GLEAD)
  • DAML6188 - GaAs FET Low Noise Amplifier (DAICO Industries)
  • DAML6231 - X-Band LNA (DAICO Industries)
  • DAML6266 - Low Noise Amplifier (DAICO Industries)
  • DAML6273 - Variable Gain Low Noise Amplifier (DAICO Industries)
  • DAML6274 - Variable Gain Low Noise Amplifier (DAICO Industries)
  • DAML6275 - Variable Gain Low Noise Amplifier (DAICO Industries)
Other Datasheets by Hitachi

Full PDF Text Transcription

Click to expand full text

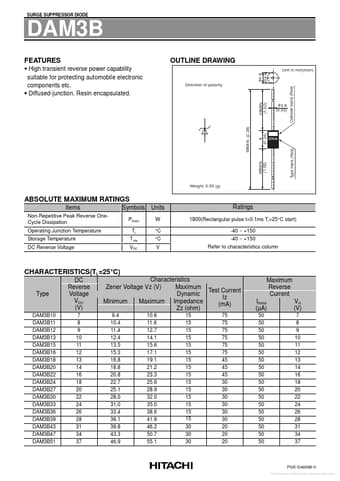

SURGE SUPPRESSOR DIODE DAM3B FEATURES • High transient reverse power capability suitable for protecting automobile electronic components etc. • Diffused-junction. Resin encapsulated. OUTLINE DRAWING φ 3.6 (0.14) Unit in mm(inch) φ 0.8 (0.03) 58MIN. (2.28) 6 (0.24) 27CA Weight: 0.50 (g) ABSOLUTE MAXIMUM RATINGS Items Non-Repetitive Peak Reverse OneCycle Dissipation Operating Junction Temperature Storage Temperature DC Reverse Voltage Symbols PRSM Tj Tstg VDC Units W °C °C V Ratings 1800(Rectangular pulse t=0.
