K2221 2SK2221

K2221 Description

2SK2220, 2SK2221 Silicon N-Channel MOS FET Application Low frequency power amplifier Complementary pair with 2SJ351, 2SJ352 .

K2221 Features

* High power gain
* Excellent frequency response
* High speed switching
* Wide area of safe operation
* Enhancement-mode
* Good complementary characteristics
* Equipped with gate protection diodes Outline TO-3P D G1 2 3 1. Gate 2. Source (Flang

📥 Download Datasheet

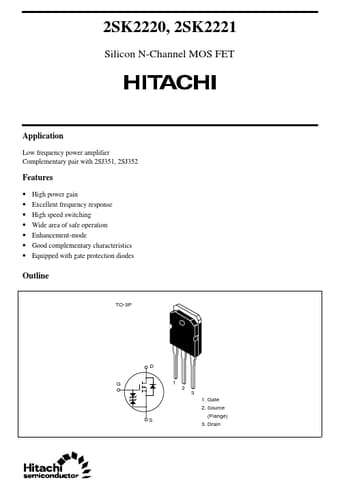

Preview of K2221 PDF
datasheet Preview Page 2 datasheet Preview Page 3
