HD74LV08A - Quad. 2-input AND Gates

General Description

The HD74LV08A has four two-input AND gates in a 14-pin package.

Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life.

Key Features

  • VCC = 2.0 V to 5.5 V operation All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) Function Table Inputs A H L X Note: H: High level L: Low level X: Immaterial B H X L Output Y H L L HD74LV08A Pin Arra.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HD74LV08A 2-input AND Gates Renesas
HD74LV00A 2-input NAND Gates Renesas
HD74LV02A 2-input NOR Gates Renesas
HD74LV04A Hex Inverters Renesas
HD74LV05A Hex Inverters Renesas

Other Datasheets by Hitachi Semiconductor (now Renesas)

Part Number Description
HD74LV00A Quad. 2-input NAND Gates
HD74LV02A Quad. 2-input NOR Gates
HD74LV04A Hex Inverters
HD74LV05A Hex Inverters with Open Drain Outputs
HD74LV06A Hex Inverter Buffers / Drivers with Open Drain Outputs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

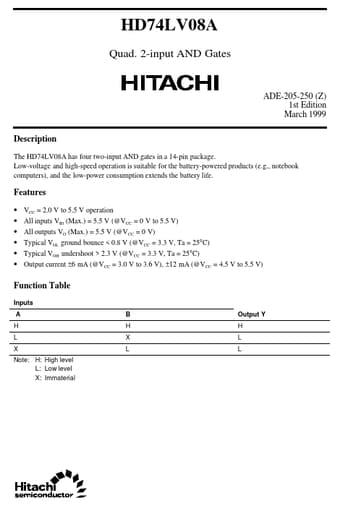

HD74LV08A Quad. 2-input AND Gates ADE-205-250 (Z) 1st Edition March 1999 Description The HD74LV08A has four two-input AND gates in a 14-pin package. Low-voltage and high-speed operation is suitable for the battery-powered products (e.g., notebook computers), and the low-power consumption extends the battery life. Features • • • • • • VCC = 2.0 V to 5.5 V operation All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V) Typical VOL ground bounce < 0.8 V (@VCC = 3.3 V, Ta = 25°C) Typical VOH undershoot > 2.3 V (@VCC = 3.3 V, Ta = 25°C) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.
