HD74HC27 Triple 3-input NOR Gates

HD74HC27 Description

HD74HC27 Triple 3-input NOR Gates .

HD74HC27 Features

* High Speed Operation: tpd = 10 ns typ (CL = 50 pF) High Output Current: Fanout of 10 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 1 µA max (Ta = 25°C) Pin Arrangement 1A

📥 Download Datasheet

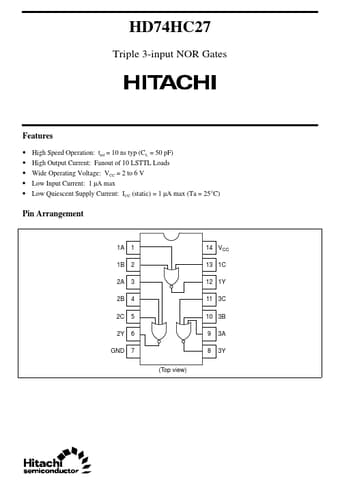

Preview of HD74HC27 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HD74HC27
Manufacturer
Hitachi Semiconductor
File Size
39.77 KB
Datasheet
HD74HC27_HitachiSemiconductor.pdf
Description
Triple 3-input NOR Gates
