HD74HC251 1 of 8 Data Selectors/Multiplexers (with 3-state outputs)

HD74HC251 Description

HD74HC251 1 of 8 Data Selectors/Multiplexers (with 3-state outputs) .
This multiplexer features both true (Y) and complement (W) outputs as well as a strobe input.

HD74HC251 Features

* both true (Y) and complement (W) outputs as well as a strobe input. The strobe must be at a low logic level to enable this device. When the strobe input is high, both outputs are in the high impedance state. When enabled, address information on the data select inputs determines which data input is r

📥 Download Datasheet

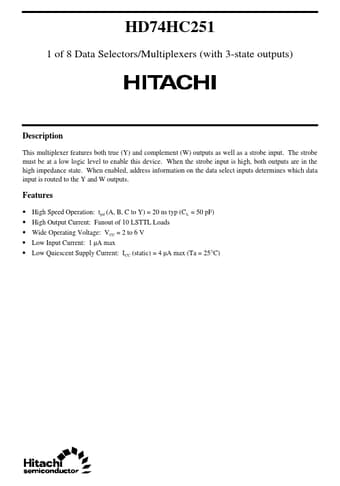

Preview of HD74HC251 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HD74HC251
Manufacturer
Hitachi Semiconductor
File Size
54.06 KB
Datasheet
HD74HC251_HitachiSemiconductor.pdf
Description
1 of 8 Data Selectors/Multiplexers (with 3-state outputs)
