HD74HC123A Dual Retriggerable Monostable Multivibrators

HD74HC123A Description

HD74HC123A Dual Retriggerable Monostable Multivibrators (with Clear) .
This multivibrator features both a negative, A, and a positive, B, transition triggered input, either of which can be used as an inhibit input.

HD74HC123A Features

* both a negative, A, and a positive, B, transition triggered input, either of which can be used as an inhibit input. Also included is a clear input that when taken low resets the one shot. The HD74HC123A can be triggered on the positive transition of the clear while A is held low and B is held high.

📥 Download Datasheet

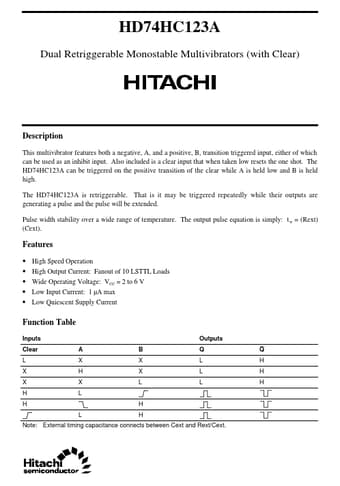

Preview of HD74HC123A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HD74HC123A
Manufacturer
Hitachi Semiconductor
File Size
48.57 KB
Datasheet
HD74HC123A_HitachiSemiconductor.pdf
Description
Dual Retriggerable Monostable Multivibrators
