HD74AC366 - Hex Inverter Buffer with 3-State Output

Hitachi Semiconductor

📥 Download Datasheet

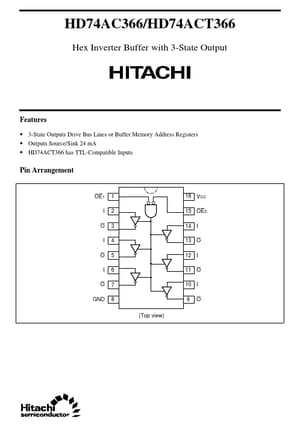

HD74AC366 Datasheet Preview — Preview of HD74AC366 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: HD74AC366
Manufacturer: Hitachi Semiconductor
File Size: 54.14 KB
Datasheet: HD74AC366_HitachiSemiconductor.pdf
Description: Hex Inverter Buffer with 3-State Output

HD74AC366 Product details

Features

3-State Outputs Drive Bus Lines or Buffer Memory Address Registers.
Outputs Source/Sink 24 mA.
HD74ACT366 has TTL-Compatible Inputs Pin Arrangement OE1 I O I O I O GND 1 2 3 4 5 6 7 8 (Top view) 16 VCC 15 OE2 14 I 13 O 12 I 11 O 10 I 9 O HD74AC366/HD74ACT366 Logic Symbol OE1 OE2 I O Pin Names OE1, OE2 I O 3-State Output: Enable Input (Active Low) Inputs Outputs Truth Table Inputs OE1 L L X H H L X Z : : : : OE2 L L H X High Voltage Level Low Voltage Level Imm.
