HB288032C5 - CompactFlash

Hitachi Semiconductor

Datasheet Details

Part number	HB288032C5
Manufacturer	Hitachi Semiconductor
File Size	171.63 KB
Description	CompactFlash
Datasheet	HB288032C5_HitachiSemiconductor.pdf

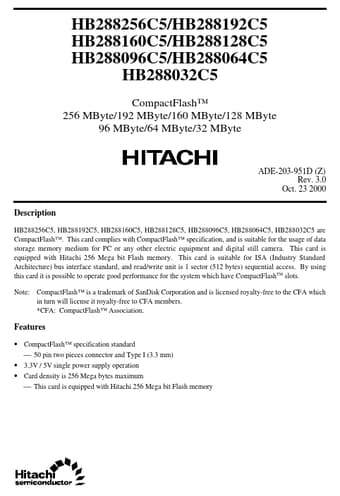

HB288256C5, HB288192C5, HB288160C5, HB288128C5, HB288096C5, HB288064C5, HB288032C5 are CompactFlash™.

CompactFlash™ specification standard  50 pin two pieces connector and Type I (3.3 mm).
3.3V / 5V single power supply operation.
Card density is 256 Mega bytes maximum  This card is equipped with Hitachi 256 Mega bit Flash memory HB288256/192/160/128/096/064/032C5.
3 variations of mode access  Memory card mode  I/O card mode  True IDE mode.
Internal self-diagnostic program operates at VCC power on.
High reliability based on internal ECC.
