HA22012 Low Noise Amplifier

HA22012 Description

HA22012 www.DataSheet4U.com GaAs MMIC Low Noise Amplifier for Micro Wave Application ADE-207-217 (Z) 1st.Edition July 1996 .

HA22012 Features

* Suitable for low noise amplifier of PHS (1.9 GHz) Low voltage and low current operation (3V, 3mA typ. ) Low noise (1.9 dB typ. ) High power gain (13.5 dB typ. ) Built
* in input and output matching circuits (50Ω) Small surface mount pack

📥 Download Datasheet

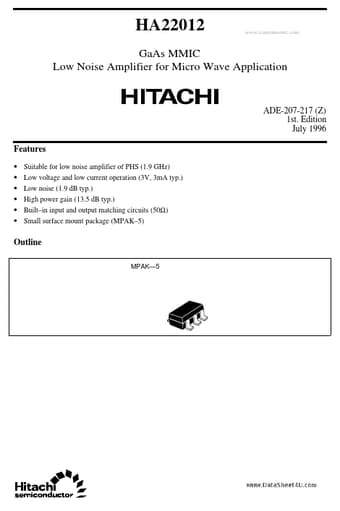

Preview of HA22012 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HA22012
Manufacturer
Hitachi Semiconductor
File Size
82.54 KB
Datasheet
HA22012_HitachiSemiconductor.pdf
Description
Low Noise Amplifier
