HA17824V - 3-terminal Fixed Voltage Regulators

Name: HA17824V
SKU: HA17824V-56191

Hitachi Semiconductor

The HA17824V by Hitachi Semiconductor is a 3-terminal Fixed Voltage Regulators. Below is the official datasheet preview.

Datasheet Details

Part number	HA17824V
Manufacturer	Hitachi Semiconductor
File Size	62.70 KB
Description	3-terminal Fixed Voltage Regulators
Datasheet	HA17824V_HitachiSemiconductor.pdf

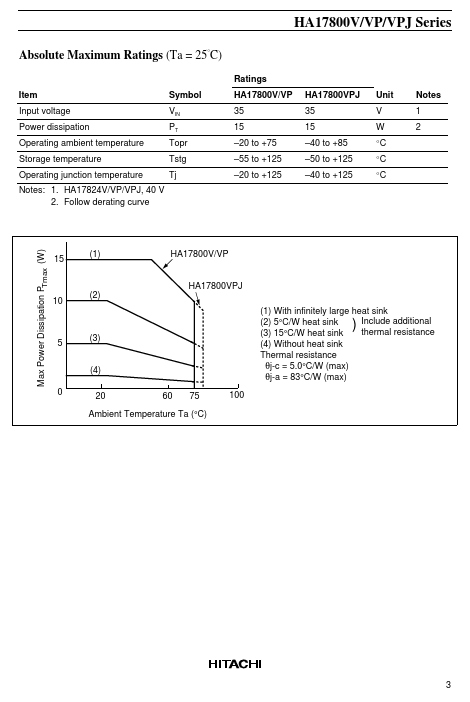

Additional preview pages of the HA17824V datasheet.

HA17800V series is positive output 1 A three-terminal regulator IC.

are as follows. It is designed to suit to the power supply of various equipments and to stabilize the multi switching regulator voltage, and to supply power to some kind of control devices. Features.
High ripple rejection ratio up to high frequency (f 20 kHz): 60 dB(in the case of HA17805V/VP/VPJ).
Protected against oscillation.
Regulated output voltage against temperature (0 Ta 125°C, 80 ppm/°C typ).
Hard to breakdown against irrelevant connection.
