HA13609ANT - Three-Phase Brushless Motor Driver

Name: HA13609ANT
SKU: HA13609ANT-55928

Hitachi Semiconductor

The HA13609ANT by Hitachi Semiconductor is a Three-Phase Brushless Motor Driver. Below is the official datasheet preview.

Datasheet Details

Part number	HA13609ANT
Manufacturer	Hitachi Semiconductor
File Size	143.55 KB
Description	Three-Phase Brushless Motor Driver
Datasheet	HA13609ANT_HitachiSemiconductor.pdf

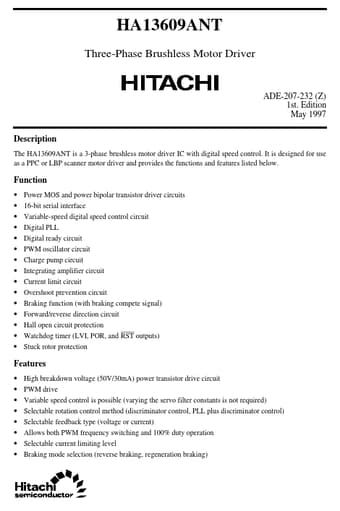

Additional preview pages of the HA13609ANT datasheet.

The HA13609ANT is a 3-phase brushless motor driver IC with digital speed control.

listed below. Function.
Power MOS and power bipolar transistor driver circuits 16-bit serial interface Variable-speed digital speed control circuit Digital PLL Digital ready circuit PWM oscillator circuit Charge pump circuit Integrating amplifier circuit Current limit circuit Overshoot prevention circuit Braking function (with braking compete signa.
