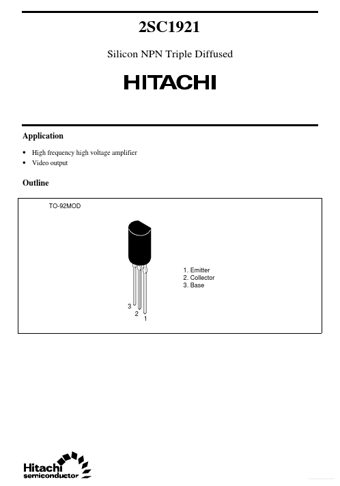

2SC1921
Silicon NPN Triple Diffused
Application
• High frequency high voltage amplifier • Video output
Outline
TO-92MOD
1. Emitter 2. Collector 3. Base 3 2 1
Free Datasheet http://www.datasheet4u.net/
2SC1921
Absolute Maximum Ratings (Ta = 25°C)
Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 250 200 5 50 600 150 –55 to +150 Unit V V V mA mW °C °C
Electrical Characteristics (Ta = 25°C)
Item Collector to base breakdown voltage Symbol V(BR)CBO Min 250 200 5 — 30 — 60 — Typ — — — — — — 130 3 Max — — — 1.0 300 1.
