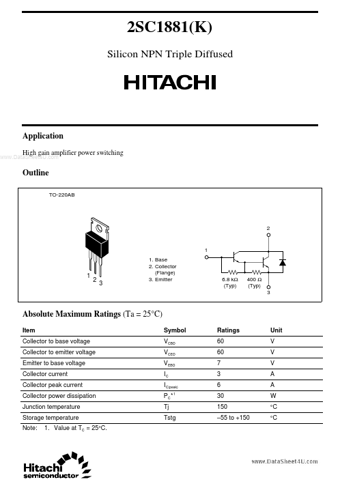

2SC1881(K)
Silicon NPN Triple Diffused
Application
www.DataSheet4U.com
High gain amplifier power switching
Outline
TO-220AB
2
1 1. Base 2. Collector (Flange) 3. Emitter
1
2 3
6.8 kΩ (Typ)
400 Ω (Typ) 3
Absolute Maximum Ratings (Ta = 25°C)
Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Symbol VCBO VCEO VEBO IC I C(peak) PC * Tj Tstg
1
Ratings 60 60 7 3 6 30 150 –55 to +150
Unit V V V A A W °C °C
2SC1881(K)
Electrical Characteristics (Ta = 25°C)
Item Symbol Min 60 7 — — 1000 500 Collector to emitter saturation voltage Turn on time Turn off time Note: 1. Pulse test.
