74221 - Dual Monostable Multivibrators

Name: 74221
SKU: 74221-248175

Hitachi Semiconductor

The 74221 by Hitachi Semiconductor is a Dual Monostable Multivibrators. Below is the official datasheet preview.

Datasheet Details

Part number	74221
Manufacturer	Hitachi Semiconductor
File Size	53.57 KB
Description	Dual Monostable Multivibrators
Datasheet	74221_HitachiSemiconductor.pdf

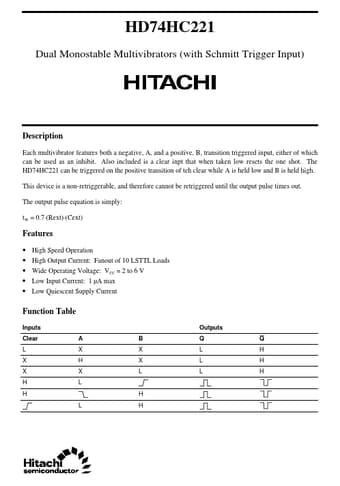

Additional preview pages of the 74221 datasheet.

Each multivibrator

both a negative, A, and a positive, B, transition triggered input, either of which can be used as an inhibit. Also included is a clear inpt that when taken low resets the one shot. The HD74HC221 can be triggered on the positive transition of teh clear while A is held low and B is held high. This device is a non-retriggerable, and therefore cannot be retriggered until the output pulse times out. The output pulse equation is simply: tW = 0.7.
(Rext).
(Cext) Features.
