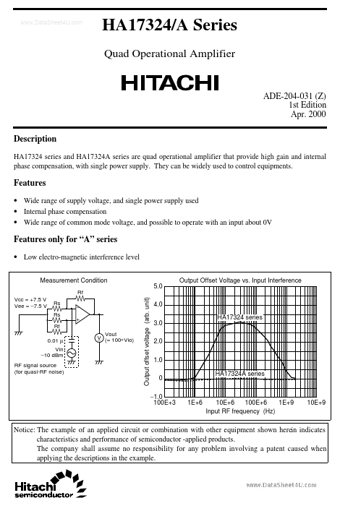

Description
HA17324 series and HA17324A series are quad operational amplifier that provide high gain and internal phase compensation, with single power supply.
Features
- Wide range of supply voltage, and single power supply used.
- Internal phase compensation.
- Wide range of common mode voltage, and possible to operate with an input about 0V
Features only for “A” series.
- Low electro-magnetic interference level
Measurement Condition
Rf Vcc = +7.5 V Vee =.
- 7.5 V Rs Rs Rf 0.01 µ Vin.
- 10 dBm RF signal source (for quasi-RF noise) Vout V _ (= 100∗Vio)
5.0
Output offset voltage (arb. unit)
Output Offset Voltage vs. I.
