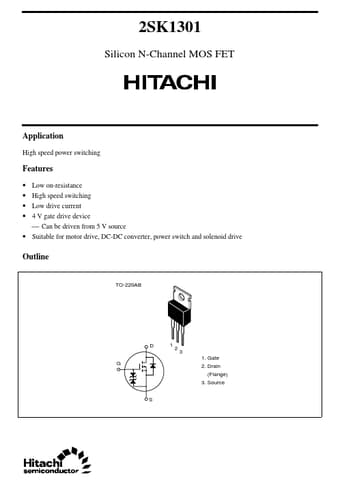

2SK1301 - Silicon N-Channel MOSFET

Hitachi Semiconductor

Datasheet Details

Part number	2SK1301
Manufacturer	Hitachi Semiconductor
File Size	48.53 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK1301_HitachiSemiconductor.pdf

Low on-resistance High speed switching Low drive current 4 V gate drive device  Can be driven from 5 V source.
Suitable for motor drive, DC-DC converter, power switch and solenoid drive Outline TO-220AB D G 1 2 3 1. Gate 2. Drain (Flange) 3. Source S 2SK1301 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation.
