2SD2492 - Silicon NPN Transistor

Hitachi Semiconductor

Datasheet Details

Part number	2SD2492
Manufacturer	Hitachi Semiconductor
File Size	26.84 KB
Description	Silicon NPN Transistor
Datasheet	2SD2492_HitachiSemiconductor.pdf

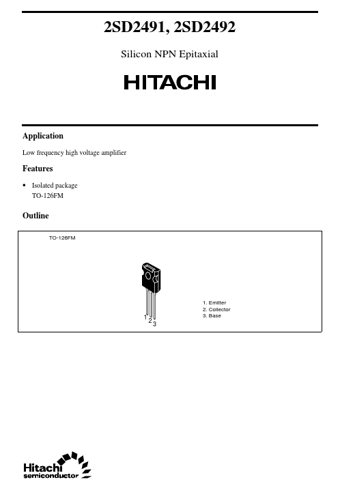

Isolated package TO-126FM Outline TO-126FM 1 2 1. Emitter 2. Collector 3. Base 3 2SD2491, 2SD2492 Absolute Maximum Ratings (Ta = 25°C) Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C Symbol VCBO VCEO VEBO IC PC PC.
Tj Tstg 1 2SD2491 160 160 5 100 1.35 8 150.
55 to +150 2SD2492 200.
