2SD2046 Datasheet (Hitachi Semiconductor)

2SD2046, Silicon NPN Transistor

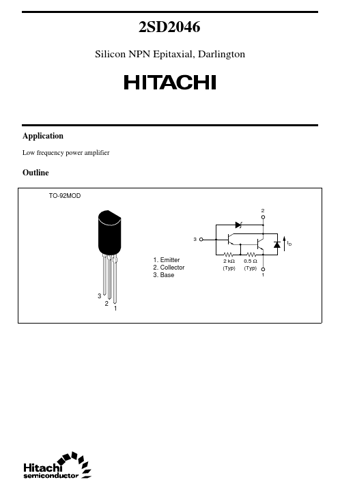

2SD2046 Silicon NPN Epitaxial, Darlington Application Low frequency power amplifier Outline TO-92MOD 2 3 ID 2 kΩ (Typ) 0.5 Ω (Typ) 1 1.

Emitter 2.

Collector 3.

Base 3 2 1 2SD2046 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature E to C diode forward current Symbol VCBO VEBO IC ic (peak) PC Tj Tstg ID Ratings 50 7 1.5 3.0 1.0 150 55
