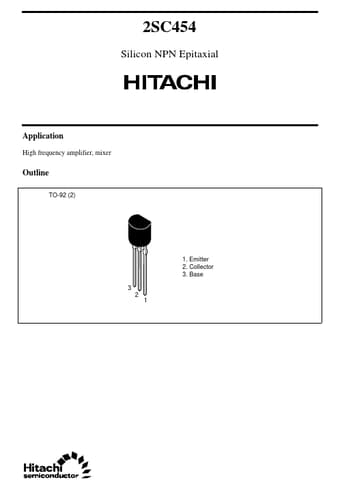

2SC454
Silicon NPN Epitaxial
Application
High frequency amplifier, mixer
Outline
TO-92 (2)
1. Emitter 2. Collector 3. Base 3 2 1
2SC454
Absolute Maximum Ratings (Ta = 25°C)
Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 30 30 5 100 200 150 –55 to +150 Unit V V V mA mW °C °C
Electrical Characteristics (Ta = 25°C)
Item Collector to base breakdown voltage Symbol V(BR)CBO Min 30 30 5 — —
1
Typ — — — — — — 0.63 — 230 — — 35
Max — — — 0.5 0.5 500 0.75 0.2 — 3.
2SC454 Datasheet
