2SC2324K Datasheet (Hitachi Semiconductor)

2SC2324K, Silicon NPN Transistor

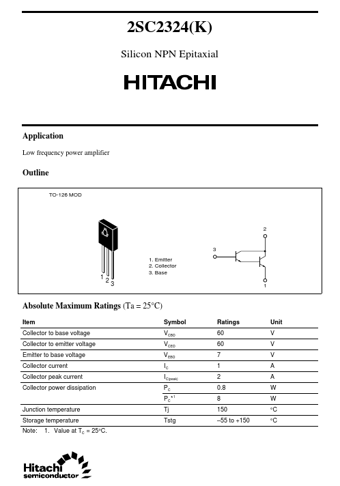

2SC2324(K) Silicon NPN Epitaxial Application Low frequency power amplifier Outline TO-126 MOD 2 3 1.

Emitter 2.

Collector 3.

Base 1 2 3 1 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Symbol VCBO VCEO VEBO IC I C(peak) PC PC Junction temperature Storage temperature Note: 1.

Value at TC = 25°C.

Tj Tstg 1 Ratings 60 60 7 1 2 0.8 8 150 <
