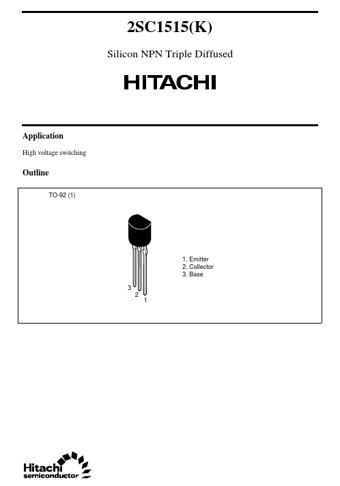

2SC1515(K) Silicon NPN Triple Diffused Application High voltage switching Outline TO-92 (1) 1. Emitter 2. Collector 3. Base 3 2 1 2SC1515 (K) Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Symbol VCBO VCES VCEO Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature VEBO IC PC Tj Tstg Ratings 200 200 150 5 50 200 150 –55 to +150 Unit V V V V mA mW °C °C Electrical Characteristics (Ta = 25°C) Item Symbol Min 200 150 5 — 30 — — 60 — Typ — — — — — — — — — Max — — — 0.1 300 1.0 1.
