DF9C-19S-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)

Download the DF9C-19S-1V datasheet PDF (DF9 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 1mm pitch smt board to board connector(standard interface connector compliant with vesa fpdi-1).

Features

1. Compliant with the VESA FPDI-1 Standard Interface Connector The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which U. S VESA. has selected as FPDI-1. VESA: Video Electronics Standards Association FPDI-1: Flat Panel Display Interface 2. Perfect Mis-insertion Prevention The mating area is designed in a trapezoidal structure, and perfectly prevents the mis-insertion despite the miniature size. 3. Equipped with Easy Lock Mech.

Hirose

📥 Download Datasheet

Datasheet Details

Part number	DF9C-19S-1V
Manufacturer	Hirose
File Size	275.53 KB
Description	1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
Datasheet	DF9C-19S-1V Datasheet

📁 Similar Datasheet

DF900R12IP4D - IGBT (Infineon)
DF900R12IP4DV - IGBT (Infineon)
DF903S09B - Dielectric Filters (Token)
DF903S6A - Dielectric Filters (Token)
DF906S20B - Dielectric Filters (Token)
DF915S25A - Dielectric Filters (Token)
DF916S30B - Dielectric Filters (Token)
DF91S - DF SERIES 15 AMP THERMAL CUTOFFS (Thermtrol Corporation)
DF927S6A - Dielectric Filters (Token)
DF96 - Regelbare Pentode (RFT)

Other Datasheets by Hirose

DF9C-19P-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9C-11P-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9C-11S-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9C-13P-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9C-13S-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9C-15P-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9C-15S-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9C-17P-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)

Full PDF Text Transcription

Click to expand full text

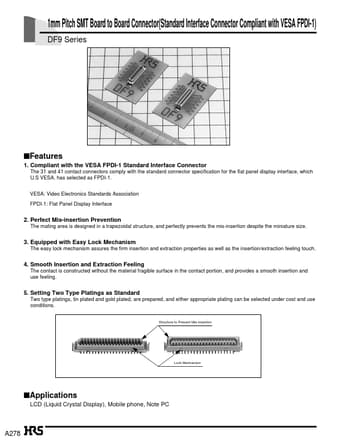

1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1) DF9 Series sFeatures 1. Compliant with the VESA FPDI-1 Standard Interface Connector The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which U.S VESA. has selected as FPDI-1. VESA: Video Electronics Standards Association FPDI-1: Flat Panel Display Interface 2. Perfect Mis-insertion Prevention The mating area is designed in a trapezoidal structure, and perfectly prevents the mis-insertion despite the miniature size. 3. Equipped with Easy Lock Mechanism The easy lock mechanism assures the firm insertion and extraction properties as well as the insertion/extraction feeling touch. 4.
