DF9B-13P-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)

Download the DF9B-13P-1V datasheet PDF. This datasheet also covers the DF9 variant, as both devices belong to the same 1mm pitch smt board to board connector(standard interface connector compliant with vesa fpdi-1) family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1. Compliant with the VESA FPDI-1 Standard Interface Connector The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which U. S VESA. has selected as FPDI-1. VESA: Video Electronics Standards Association FPDI-1: Flat Panel Display Interface 2. Perfect Mis-insertion Prevention The mating area is designed in a trapezoidal structure, and perfectly prevents the mis-insertion despite the miniature size. 3. Equipped with Easy Lock Mech.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DF9-A11P.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DF9B-13P-1V
Manufacturer Hirose
File Size 275.53 KB
Description 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
Datasheet download datasheet DF9B-13P-1V Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DF900R12IP4D IGBT Infineon
DF900R12IP4DV IGBT Infineon
DF903S09B Dielectric Filters Token
DF903S6A Dielectric Filters Token
DF906S20B Dielectric Filters Token

Other Datasheets by Hirose

Part Number Description
DF9B-13S-1V 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9B-11P-1V 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9B-11S-1V 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9B-15P-1V 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
DF9B-15S-1V 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

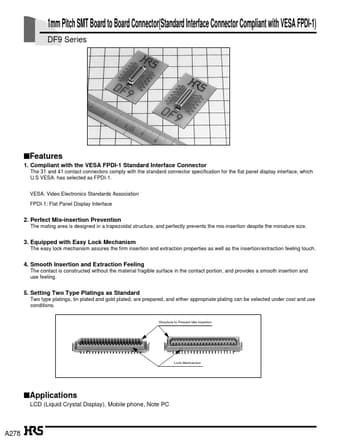

1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1) DF9 Series sFeatures 1. Compliant with the VESA FPDI-1 Standard Interface Connector The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which U.S VESA. has selected as FPDI-1. VESA: Video Electronics Standards Association FPDI-1: Flat Panel Display Interface 2. Perfect Mis-insertion Prevention The mating area is designed in a trapezoidal structure, and perfectly prevents the mis-insertion despite the miniature size. 3. Equipped with Easy Lock Mechanism The easy lock mechanism assures the firm insertion and extraction properties as well as the insertion/extraction feeling touch. 4.
