DF9-11P-1V - 1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)

Product Overview

Hirose

Part number	DF9-11P-1V
Manufacturer	Hirose
File Size	275.53 KB
Description	1mm Pitch SMT Board to Board Connector(Standard Interface Connector Compliant with VESA FPDI-1)
Datasheet	DF9-11P-1V Datasheet
Note	This datasheet PDF includes multiple part numbers: DF9-11P-1V, DF9. Please refer to the document for exact specifications by model.
Additional preview pages of the DF9-11P-1V datasheet.

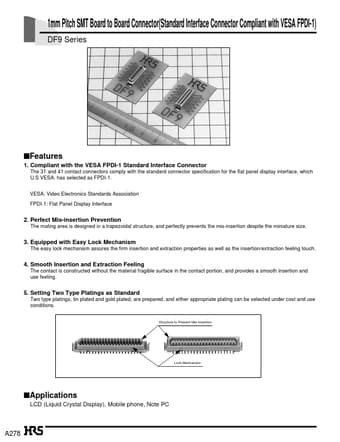

1. Compliant with the VESA FPDI-1 Standard Interface Connector The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which U. S VESA. has selected as FPDI-1. VESA: Video Electronics Standards Association FPDI-1: Flat Panel Display Interface 2. Perfect Mis-insertion Prevention The mating area is designed in a trapezoidal structure, and perfectly prevents the mis-insertion despite the miniature size. 3. Equipped with Easy Lock Mech.
