JRC16BR-14P - Circular Connectors

Product Overview

Hirose Electric

Part number	JRC16BR-14P
Manufacturer	Hirose Electric
File Size	432.78 KB
Description	Circular Connectors
Datasheet	JRC16BR-14P Datasheet
Note	This datasheet PDF includes multiple part numbers: JRC16BR-14P, JRC13RC. Please refer to the document for exact specifications by model.
Additional preview pages of the JRC16BR-14P datasheet.

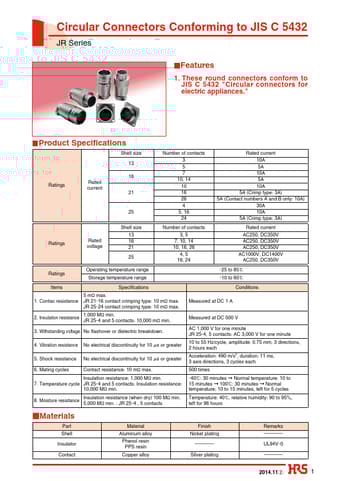

1. These round connectors conform to JIS C 5432 "Circular connectors for electric appliances. " Product Speciﬁcations Ratings Rated current Shell size 13 16 21 25 Number of contacts 3 5 7 10, 14 10 16 26 4 5, 16 24 Rated current 10A 5A 10A 5A 10A 5A (Crimp type: 3A) 5A (Contact numbers A and B only: 10A) 30A 10A 5A (Crimp type: 3A) Ratings Rated voltage Shell size 13 16 21 25 Number of contacts 3, 5 7, 10, 14 10, 16, 26 4, 5 16, 24 Rated current AC250, DC350V AC250, DC350V AC250, DC350.
