DCH3053 - Input-Output Proportional 0-30kV DC-DC HV Power Supply

The DCH3053 by High Voltage Power Solutions is a Input-Output Proportional 0-30kV DC-DC HV Power Supply. Below is the official datasheet preview.

📥 Download Datasheet

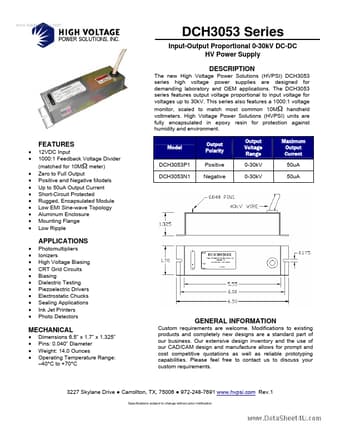

DCH3053 Input-Output Proportional 0-30kV DC-DC HV Power Supply by High Voltage Power Solutions - Datasheet Preview — Official preview page of the **DCH3053** Input-Output Proportional 0-30kV DC-DC HV Power Supply datasheet (High Voltage Power Solutions).

Datasheet Details

Part number	DCH3053
Manufacturer	High Voltage Power Solutions
File Size	179.73 KB
Description	Input-Output Proportional 0-30kV DC-DC HV Power Supply
Datasheet	DCH3053_HighVoltagePowerSolutions.pdf
Additional preview pages of the DCH3053 datasheet.

DCH3053 Product details

Description

The new High Voltage Power Solutions (HVPSI) DCH3053 series high voltage power supplies are designed for demanding laboratory and OEM applications.

Features

12VDC Input 1000:1 Feedback Voltage Divider (matched for 10MΩ meter) Zero to Full Output Positive and Negative Models Up to 50uA Output Current Short-Circuit Protected Rugged, Encapsulated Module Low EMI Sine-wave Topology Aluminum Enclosure Mounting Flange Low Ripple Model DCH3053P1 DCH3053N1 Output Polarity Positive Negative Output Voltage Range 0-30kV 0-30kV Maximum Output Current 50uA 50uA.
