SFX3009PT - 30V 90A P-CHANNEL POWER MOSFET

SFX3009PT Description

30V, 90A P-CHANNEL POWER MOSFET GENERAL .
The SFX3009PT uses advanced trench technology and design to provide excellent RDS(on) with low gate charge.

SFX3009PT Features

* VDS=-30V,ID=-90A
* RDS(on)(PDFN5
* 6-8L) TYP:3.9mΩ@VGS=-10V TYP:5.7mΩ@VGS=-4.5V

📥 Download Datasheet

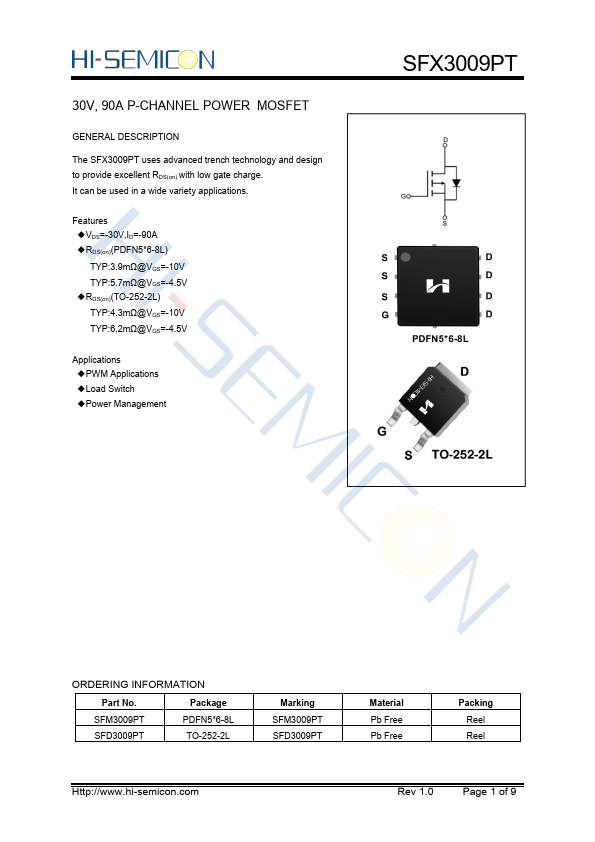

Preview of SFX3009PT PDF

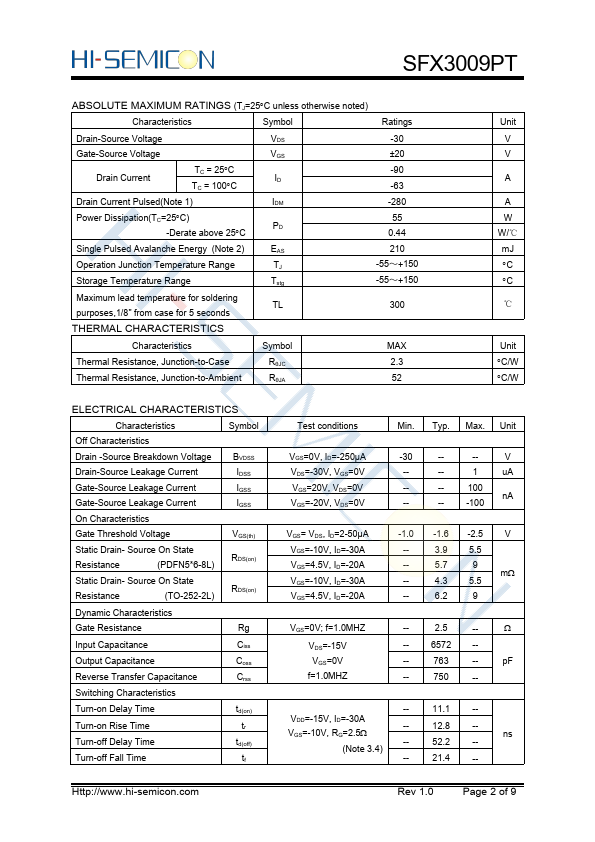

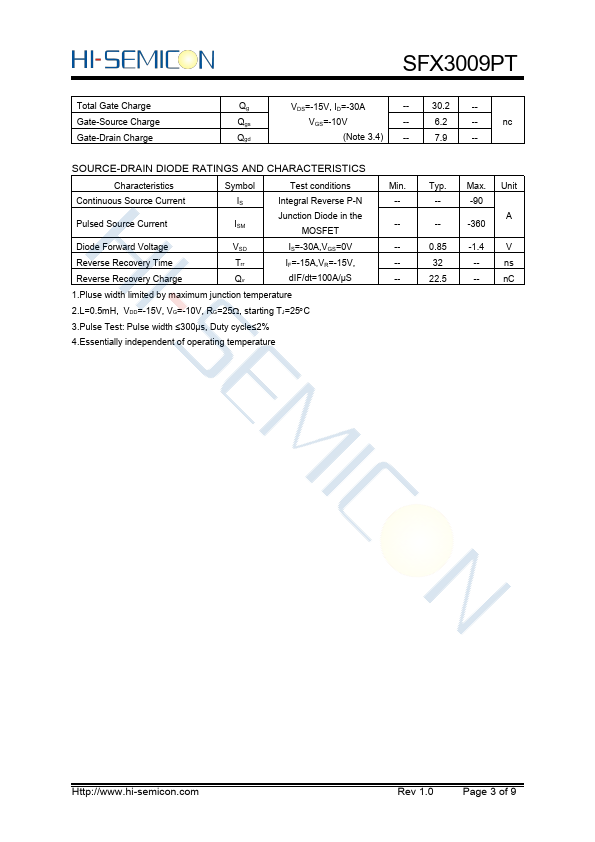

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SFX3009PT
Manufacturer
HiSemicon
File Size
1.36 MB
Datasheet
SFX3009PT-HiSemicon.pdf
Description
30V 90A P-CHANNEL POWER MOSFET
