SFD6003PT - -30A -60V P-CHANNEL MOSFET

Name: SFD6003PT
SKU: SFD6003PT-1587785

HiSemicon

The SFD6003PT by HiSemicon is a -30A -60V P-CHANNEL MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SFD6003PT
Manufacturer	HiSemicon
File Size	1.20 MB
Description	-30A -60V P-CHANNEL MOSFET
Datasheet	SFD6003PT-HiSemicon.pdf

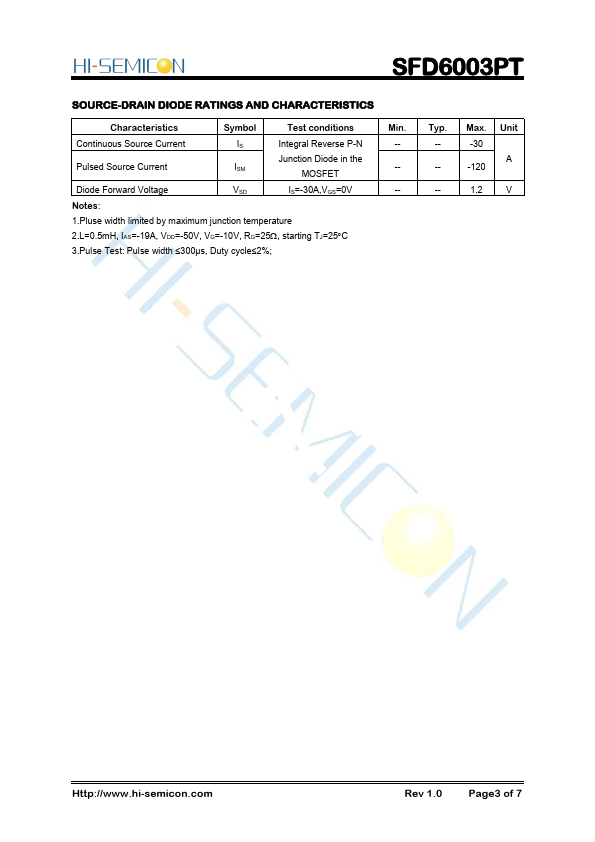

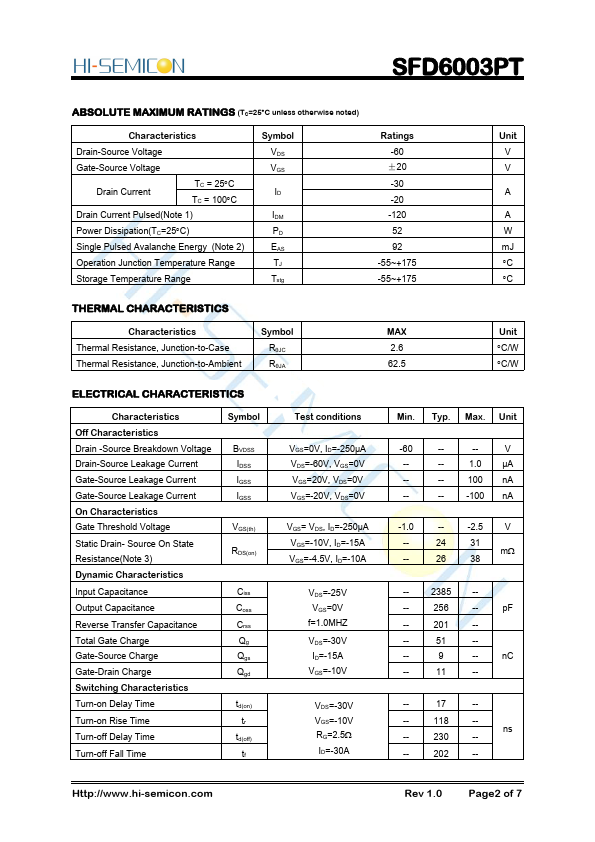

Additional preview pages of the SFD6003PT datasheet.

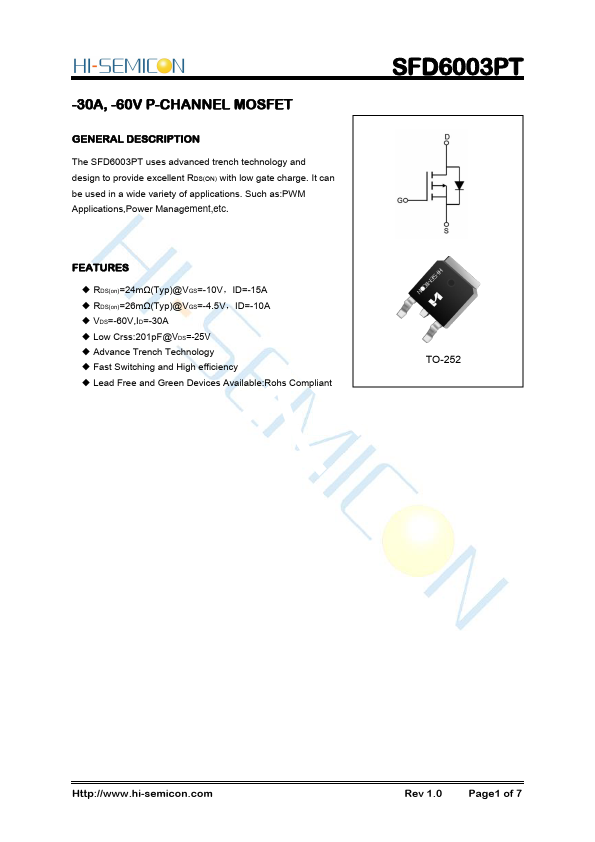

The SFD6003PT uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

RDS(on)=24mΩ(Typ)@VGS=-10V，ID=-15A.
RDS(on)=26mΩ(Typ)@VGS=-4.5V，ID=-10A.
VDS=-60V,ID=-30A.
Low Crss:201pF@VDS=-25V.
Advance Trench Technology.
Fast Switching and High efficiency.
Lead Free and Green Devices Available:Rohs Compliant SFD6003PT TO-252 Http://www. hi-semicon. com Rev 1.0 Page1 of 7 SFD6003PT.
