SFD5N50L - 5A 500V N-CHANNEL POWER MOSFET

The SFD5N50L by HiSemicon is a 5A 500V N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the SFD5N50L 5A 500V N-CHANNEL POWER MOSFET datasheet (HiSemicon).

Datasheet Details

Part number SFD5N50L
Manufacturer HiSemicon
File Size 600.18 KB
Description 5A 500V N-CHANNEL POWER MOSFET
Datasheet download datasheet SFD5N50L-HiSemicon.pdf

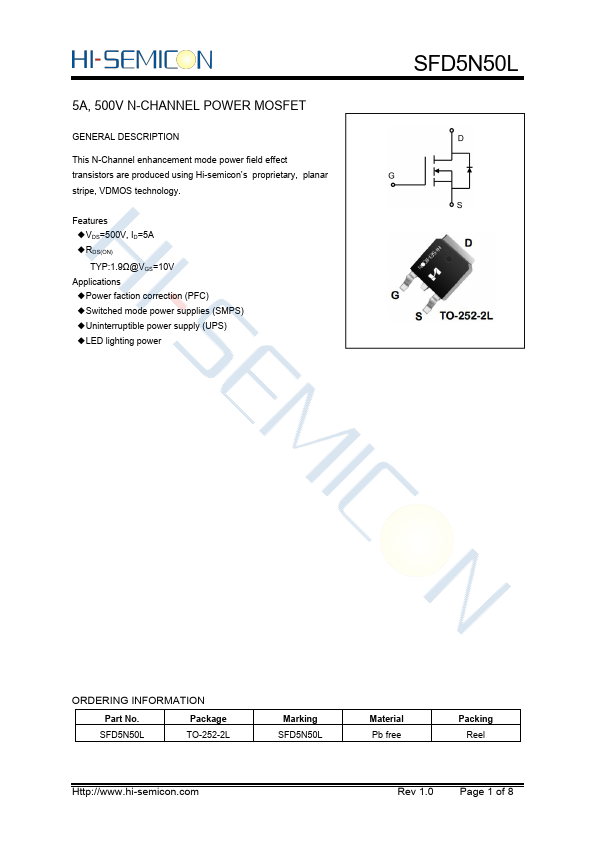

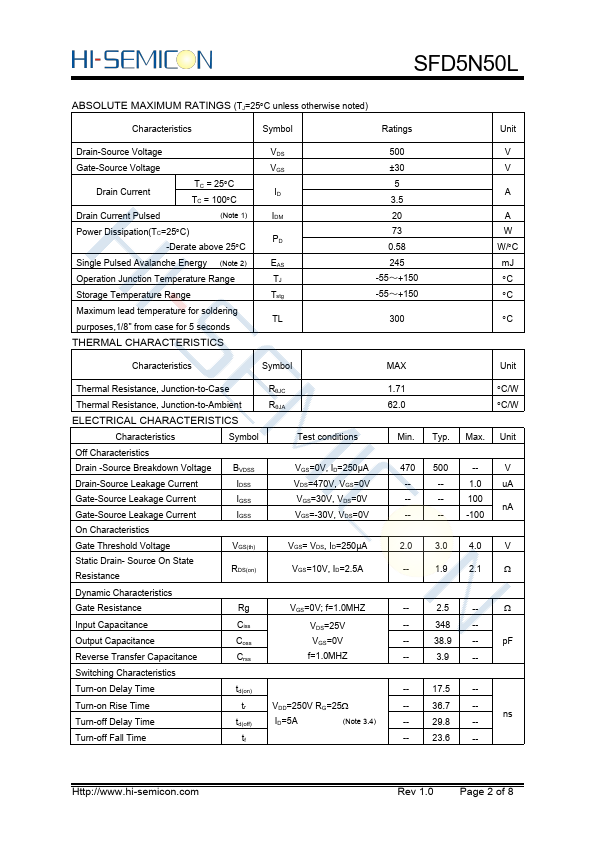

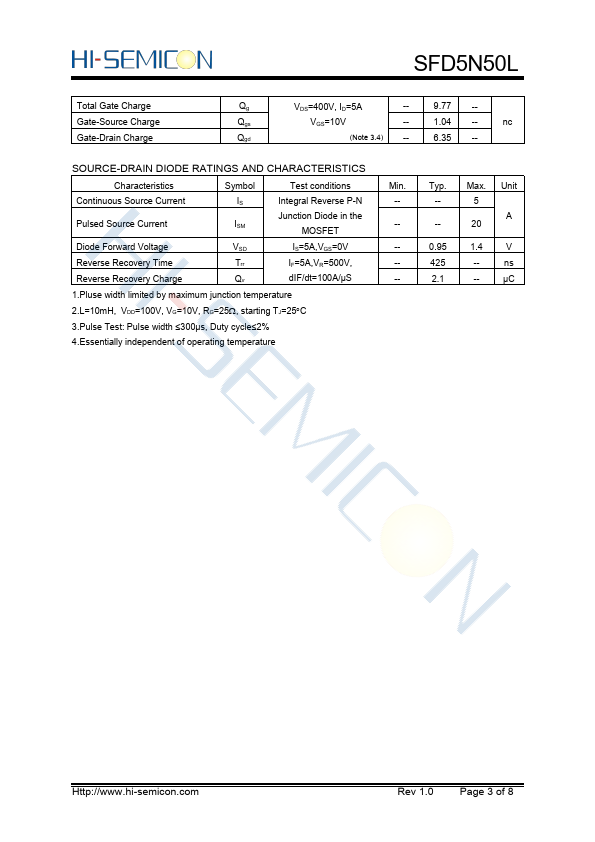

Additional preview pages of the SFD5N50L datasheet.

SFD5N50L Product details

Description

This N-Channel enhancement mode power field effect transistors are produced using Hi-semicon’s proprietary, planar stripe, VDMOS technology.

Features
