SFD4004PT - -40A -40V P-CHANNEL MOSFET

HiSemicon

The SFD4004PT by HiSemicon is a -40A -40V P-CHANNEL MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

SFD4004PT -40A -40V P-CHANNEL MOSFET by HiSemicon - Datasheet Preview — Official preview page of the SFD4004PT -40A -40V P-CHANNEL MOSFET datasheet (HiSemicon).

Datasheet Details

Part number	SFD4004PT
Manufacturer	HiSemicon
File Size	751.43 KB
Description	-40A -40V P-CHANNEL MOSFET
Datasheet	SFD4004PT-HiSemicon.pdf

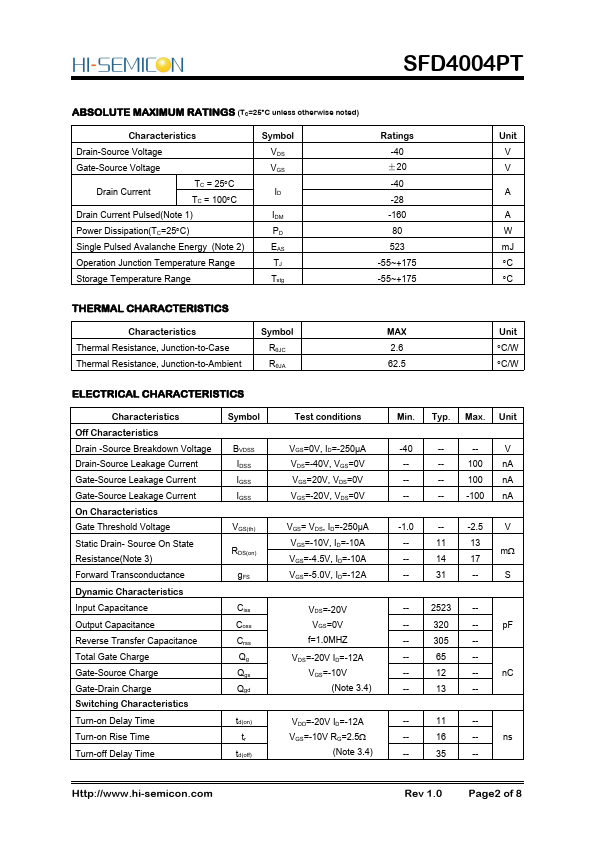

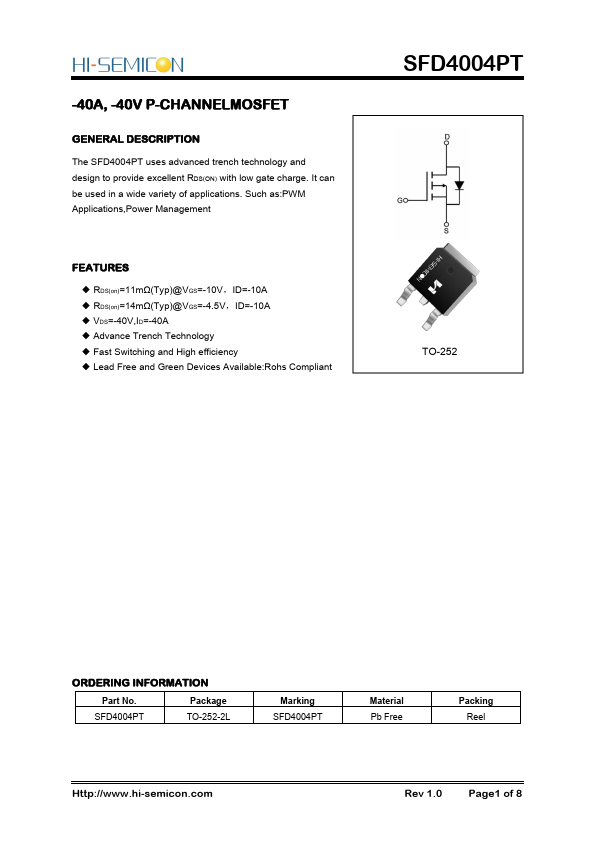

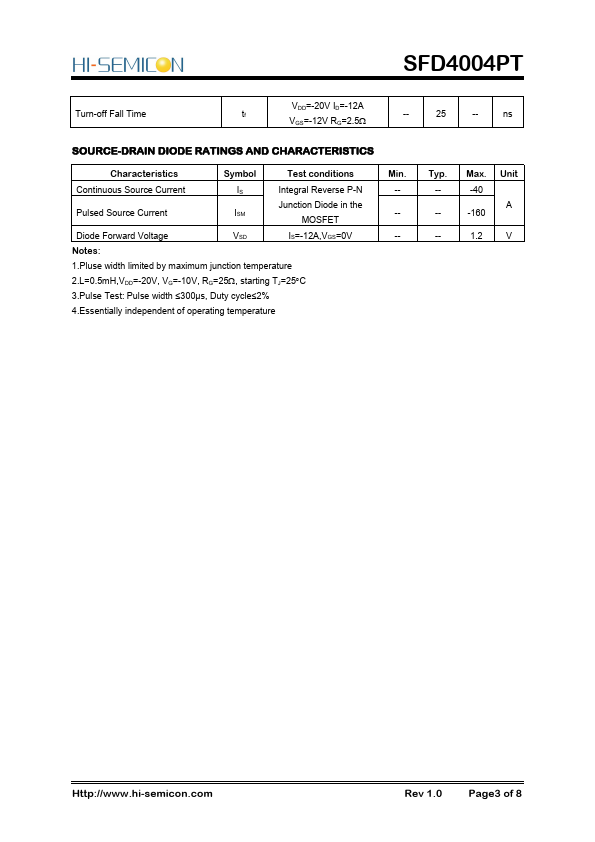

Additional preview pages of the SFD4004PT datasheet.

SFD4004PT Product details

Description

The SFD4004PT uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

RDS(on)=11mΩ(Typ)@VGS=-10V，ID=-10A.
RDS(on)=14mΩ(Typ)@VGS=-4.5V，ID=-10A.
VDS=-40V,ID=-40A.
Advance Trench Technology.
Fast Switching and High efficiency.
Lead Free and Green Devices Available:Rohs Compliant SFD4004PT TO-252.
