AMMC-5620 - Agilent AMMC-5620 6 - 20 GHz High Gain Amplifier

Download the AMMC-5620 datasheet PDF. This datasheet also covers the AMMC-5620_Hewlett variant, as both devices belong to the same agilent ammc-5620 6 - 20 ghz high gain amplifier family and are provided as variant models within a single manufacturer datasheet.

Description

Agilent’s AMMC- 5620 MMIC is a GaAs wide- band amplifier designed for medium output power and high gain over the 6

20 GHz frequency range.

The 3 cascaded stages provide high gain while the single bias supply offers ease of use.

It is fabricated using a PHEMT integrated circuit process.

Features

  • Frequency Range: 6 - 20 GHz.
  • High Gain: 19 dB Typical.
  • Output Power: 15dBm Typical.
  • Input and Output Return Loss: < -10 dB Chip Size: Chip Thickness: Pad Dimensions: 1410 x 1010 µm (55.5 x 39.7 mils) 100 ± 10µm (4 ± 0.4 mils) 80 x 80 µm (3.1 x 3.1 mils or larger) Chip Size Tolerance:± 10µm (± 0.4 mils).
  • Positive Gain Slope: + 0.21dB/GHz Typical.
  • Single Supply Bias: 5 V @ 95 mA Typical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AMMC-5620_Hewlett-Packard.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AMMC-5620
Manufacturer Hewlett-Packard
File Size 260.38 KB
Description Agilent AMMC-5620 6 - 20 GHz High Gain Amplifier
Datasheet download datasheet AMMC-5620 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AMMC-5023 Low Noise Amplifier AVAGO
AMMC-5024 Traveling Wave Amplifier AVAGO
AMMC-5025 TWA AVAGO
AMMC-5026 GaAs MMIC Traveling Wave Amplifier AVAGO
AMMC-5033 17.7 - 32 GHz Power Amplifier AVAGO

Other Datasheets by Hewlett-Packard

Part Number Description
AMMC-5618 6 - 20 GHz Amplifier
AMMC-3040 18-36 GHz Double-Balanced Mixer
AMMC-6231 16-32 GHz Low Noise Amplifier
AMMC-6345 20 - 45 GHz Driver Amplifier
AMMC-6440 37 - 42 GHz Power Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

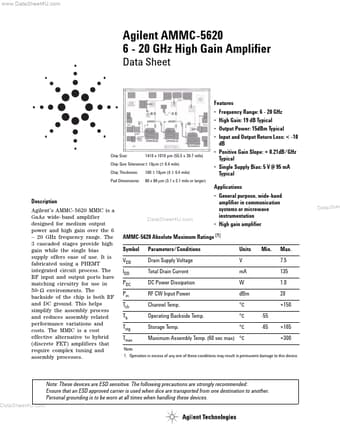

www.DataSheet4U.com Agilent AMMC-5620 6 - 20 GHz High Gain Amplifier Data Sheet Features • Frequency Range: 6 - 20 GHz • High Gain: 19 dB Typical • Output Power: 15dBm Typical • Input and Output Return Loss: < -10 dB Chip Size: Chip Thickness: Pad Dimensions: 1410 x 1010 µm (55.5 x 39.7 mils) 100 ± 10µm (4 ± 0.4 mils) 80 x 80 µm (3.1 x 3.1 mils or larger) Chip Size Tolerance:± 10µm (± 0.4 mils) • Positive Gain Slope: + 0.21dB/GHz Typical • Single Supply Bias: 5 V @ 95 mA Typical Applications Description Agilent’s AMMC- 5620 MMIC is a GaAs wide- band amplifier designed for medium output power and high gain over the 6 − 20 GHz frequency range. The 3 cascaded stages provide high gain while the single bias supply offers ease of use.
