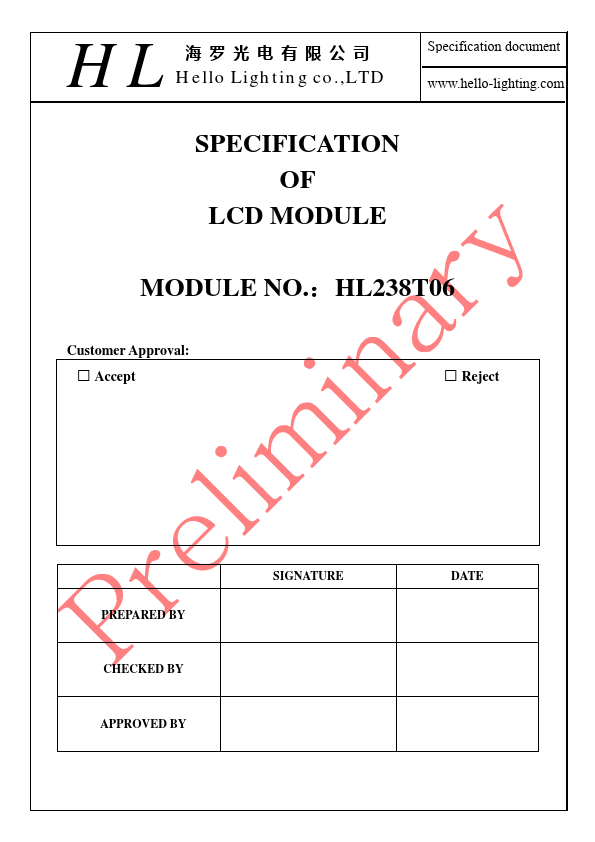

Datasheet Details
| Part number | HL238T06 |
|---|---|
| Manufacturer | Hello Lighting |
| File Size | 1.06 MB |
| Description | LCD MODULE |
| Datasheet |
 HL238T06-HelloLighting.pdf
|
| Part number | HL238T06 |
|---|---|
| Manufacturer | Hello Lighting |
| File Size | 1.06 MB |
| Description | LCD MODULE |
| Datasheet |
HL238T06-HelloLighting.pdf
|

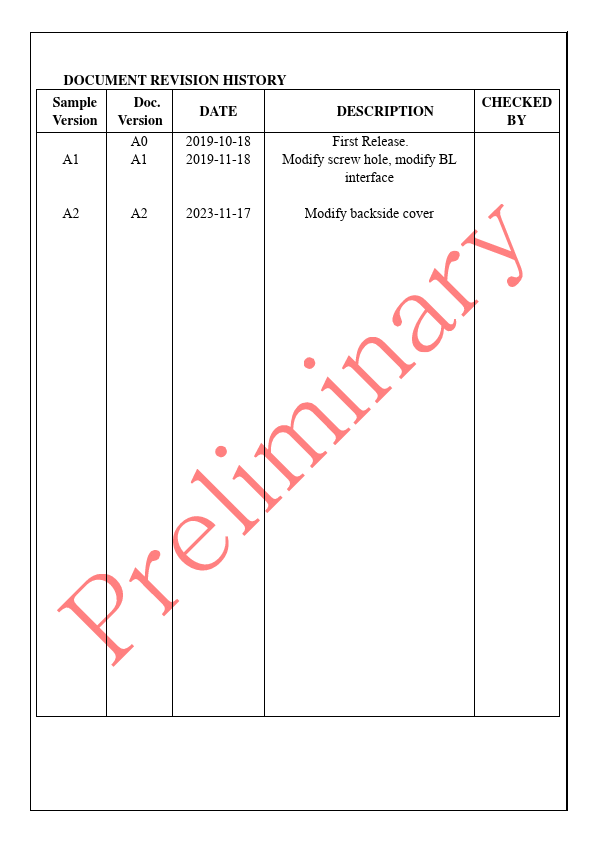

A0 2019-10-18 First Release.A1 A1 2019-11-18 Modify screw hole, modify BL interface CHECKED BY A2 A2 2023-11-17 Modify backside cover 1. MECHANICAL SPECIFICATIONS: ITEM SPECIFICATION OUTLINE DIMEMSIONS 570.0(W) X340.0(H) X11.7(D) DISPLAY SIZE 23.8 PIXEL PITCH 0.13725mmX0.13725mm NUMBER OF DOTS 3840 （RGB） 2160 DISPLAY COLORS 1.07Billion 10bit(8bit+A-FRC) PIXEL ARRANGEMENT Pixels RGB stripes arrangement DISPLAY MODE Transmissive mode, normally black SURFACE T
