85HS155-6504-001 - HYBRID STEPPING MOTOR

Download the 85HS155-6504-001 datasheet PDF. This datasheet also covers the 85HS68-1404-001 variant, as both devices belong to the same hybrid stepping motor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

85HS155-6504-001 hybrid stepping motor by HeTai - Datasheet Preview — Note: The manufacturer provides a single datasheet file (85HS68-1404-001-01HeTai.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	85HS155-6504-001
Manufacturer	HeTai
File Size	1.68 MB
Description	HYBRID STEPPING MOTOR
Datasheet	85HS155-6504-001 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
85HF	STANDARD RECOVERY DIODES	International Rectifier
85HF	Silicon Power Diode	Naina
85HF10	STANDARD RECOVERY DIODES	International Rectifier
85HF10	Silicon Power Diode	Naina
85HF10	Standard Recovery Diodes	Vishay

Other Datasheets by HeTai

Part Number	Description
85HS155-5004-001	HYBRID STEPPING MOTOR
85HS116-4208-001	HYBRID STEPPING MOTOR
85HS116-5004-001	HYBRID STEPPING MOTOR
85HS126-4008-001	HYBRID STEPPING MOTOR
85HS126-6408-001	HYBRID STEPPING MOTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

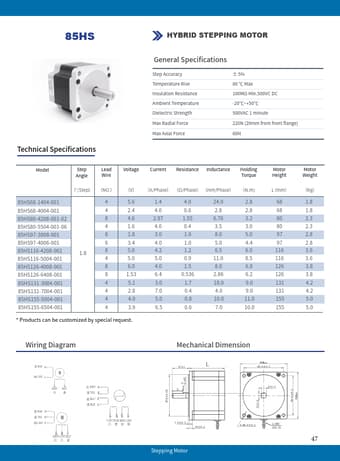

85HS HYBRID STEPPING MOTOR Technical Specifications General Specifications Step Accuracy Temperature Rise Insulation Resistance Ambient Temperature Dielectric Strength Max Radial Force Max Axial Force ± 5% 80 ℃ Maxl 100MΩ Min.500VC DC -20℃~+50℃ 500VAC 1 minute 220N (20mm from front flange) 60N Model Step Angle Lead Wire Voltage Current Resistance Inductance Holding Torque （°/Step）（NO.）（V）（A/Phase）（Ω/Phase）（mH/Phase）（N.m) 85HS68-1404-001 4 5.6 1.4 4.0 24.0 2.8 85HS68-4004-001 4 2.4 4.0 0.6 2.8 2.8 85HS80-4208-001-02 8 4.6 2.97 1.55 6.76 3.2 85HS80-5504-001-06 4 1.6 4.0 0.4 3.5 3.0 85HS97-3008-001 8 1.8 3.0 1.6 8.0 5.0 85HS97-4006-001 6 3.4 4.0 1.0 5.0 4.4 85HS116-4208-001 1.8 8 5.0 4.2 1.2 6.5 6.0 85HS116-5004-001 4 5.
