85HS116-4208-001 HYBRID STEPPING MOTOR

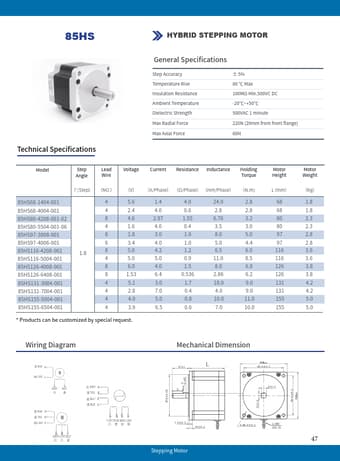

85HS HYBRID STEPPING MOTOR Technical Specifications General Specifications Step Accuracy Temperature Rise Insulation Resistance Ambient Temperature Dielectric Strength Max Radial Force Max Axial Force ± 5% 80 ℃ Maxl 100MΩ Min.500VC DC -20℃~+50℃ 500VAC 1 minute 220N (20mm from front flange) 60N Model Step Angle Lead Wire Voltage Current Resistance Inductance Holding Torque （°/Step）（NO.）（V）（A/Phase）（Ω/Phase）（mH/Phase）（N.m) 85HS68-1404-001 4 5.6 1.4 4.0 24.0 2.8 85HS68-40.

85HS68-1404-001-01HeTai.pdf

85HS116-4208-001 Datasheet Preview — This datasheet PDF includes multiple part numbers: 85HS116-4208-001, 85HS68-1404-001. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

85HS116-4208-001, 85HS68-1404-001

Manufacturer:

HeTai

File Size:

1.68 MB

Description:

Hybrid stepping motor.

Note:

This datasheet PDF includes multiple part numbers: 85HS116-4208-001, 85HS68-1404-001.
Please refer to the document for exact specifications by model.
