60HS67-2204-001 - HYBRID STEPPING MOTOR

Download the 60HS67-2204-001 datasheet PDF (60HS63-1506-01 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for hybrid stepping motor.

📥 Download Datasheet

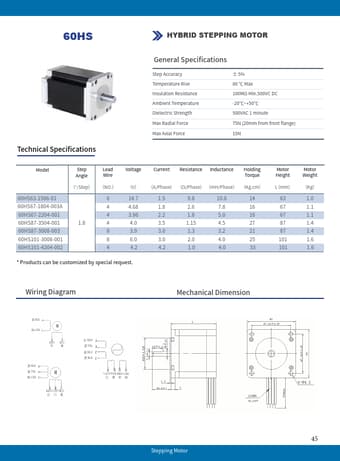

60HS67-2204-001 hybrid stepping motor by HeTai - Datasheet Preview — Note: The manufacturer provides a single datasheet file (60HS63-1506-01-01HeTai.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	60HS67-2204-001
Manufacturer	HeTai
File Size	1.41 MB
Description	HYBRID STEPPING MOTOR
Datasheet	60HS67-2204-001 Datasheet

📁 Similar Datasheet

60HS1801-xx - Hybrid Stepper Motor (UMot)
60HS5801-XX - Hybrid Stepper Motor (UMot)
60HS7801-XX - Hybrid Stepper Motor (UMot)
60HS9801-XX - Hybrid Stepper Motor (UMot)
60HE1303-XX - Hybrid Stepper Motor (UMot)
60HE2301-XX - Hybrid Stepper Motor (UMot)
60HE5302-XX - Hybrid Stepper Motor (UMot)
60HE5310-XX - Hybrid Stepper Motor (UMot)
60HFU - SUPER FAST RECTIFER DIODE (International Rectifier)
60HFU-100 - SUPER FAST RECTIFER DIODE (International Rectifier)

Other Datasheets by HeTai

60HS67-1804-003A - HYBRID STEPPING MOTOR
60HS63-1506-01 - HYBRID STEPPING MOTOR
60HS101-3008-001 - HYBRID STEPPING MOTOR
60HS101-4204-002 - HYBRID STEPPING MOTOR
60HS87-3008-003 - HYBRID STEPPING MOTOR
60HS87-3504-001 - HYBRID STEPPING MOTOR

Full PDF Text Transcription

Click to expand full text

60HS HYBRID STEPPING MOTOR Technical Specifications General Specifications Step Accuracy Temperature Rise Insulation Resistance Ambient Temperature Dielectric Strength Max Radial Force Max Axial Force ± 5% 80 ℃ Maxl 100MΩ Min.500VC DC -20℃~+50℃ 500VAC 1 minute 75N (20mm from front flange) 15N Model Step Angle Lead Wire （°/Step）（NO.） 60HS63-1506-01 6 60HS67-1804-003A 4 60HS67-2204-001 4 60HS87-3504-001 1.8 4 60HS87-3008-003 8 60HS101-3008-001 8 60HS101-4204-002 4 Voltage Current Resistance Inductance Holding Torque （V） 14.7 4.68 3.96 4.0 3.9 6.0 4.2 （A/Phase）（Ω/Phase）（mH/Phase）（Kg.cm） 1.5 9.8 10.6 14 1.8 2.6 7.8 16 2.2 1.8 5.0 16 3.5 1.15 4.5 27 3.0 1.3 3.2 21 3.0 2.0 4.0 25 4.2 1.0 4.
