IRFP153 - N-Channel Power MOSFETs

Download the IRFP153 datasheet PDF. This datasheet also covers the IRFP150 variant, as both devices belong to the same n-channel power mosfets family and are provided as variant models within a single manufacturer datasheet.

Description

These are N-Channel enhancement mode silicon gate power field effect transistors.

They are advanced power MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation.

Features

  • 34A and 40A, 60V and 100V.
  • rDS(ON) = 0.055Ω and 0.08Ω.
  • Single Pulse Avalanche Energy Rated.
  • SOA is Power Dissipation Limited.
  • Nanosecond Switching Speeds.
  • Linear Transfer Characteristics.
  • High Input Impedance.
  • Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IRFP150-Harris.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IRFP153
Manufacturer Harris
File Size 48.97 KB
Description N-Channel Power MOSFETs
Datasheet download datasheet IRFP153 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRFP153 (IRFP150 - IRFP153) HIGH VOLTAGE POWER MOSFET DIE IXYS Corporation
IRFP153 N-Channel MOSFET STMicroelectronics
IRFP153R N-Channel MOSFET Transistor Inchange Semiconductor
IRFP150 (IRFP150 - IRFP153) HIGH VOLTAGE POWER MOSFET DIE IXYS Corporation
IRFP150 N-Channel MOSFET STMicroelectronics

Other Datasheets by Harris

Part Number Description
IRFP150 N-Channel Power MOSFETs
IRFP151 N-Channel Power MOSFETs
IRFP152 N-Channel Power MOSFETs
IRF140 N-Channel Power MOSFETs
IRF141 N-Channel Power MOSFETs

Full PDF Text Transcription

Click to expand full text

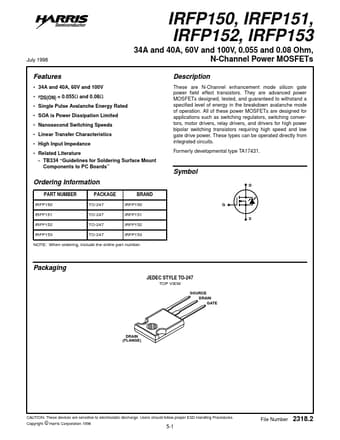

Semiconductor July 1998 IRFP150, IRFP151, IRFP152, IRFP153 34A and 40A, 60V and 100V, 0.055 and 0.08 Ohm, N-Channel Power MOSFETs Features • 34A and 40A, 60V and 100V • rDS(ON) = 0.055Ω and 0.08Ω • Single Pulse Avalanche Energy Rated • SOA is Power Dissipation Limited • Nanosecond Switching Speeds • Linear Transfer Characteristics • High Input Impedance • Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER PACKAGE BRAND IRFP150 TO-247 IRFP150 IRFP151 TO-247 IRFP151 IRFP152 TO-247 IRFP152 IRFP153 TO-247 IRFP153 NOTE: When ordering, include the entire part number. Description These are N-Channel enhancement mode silicon gate power field effect transistors.
